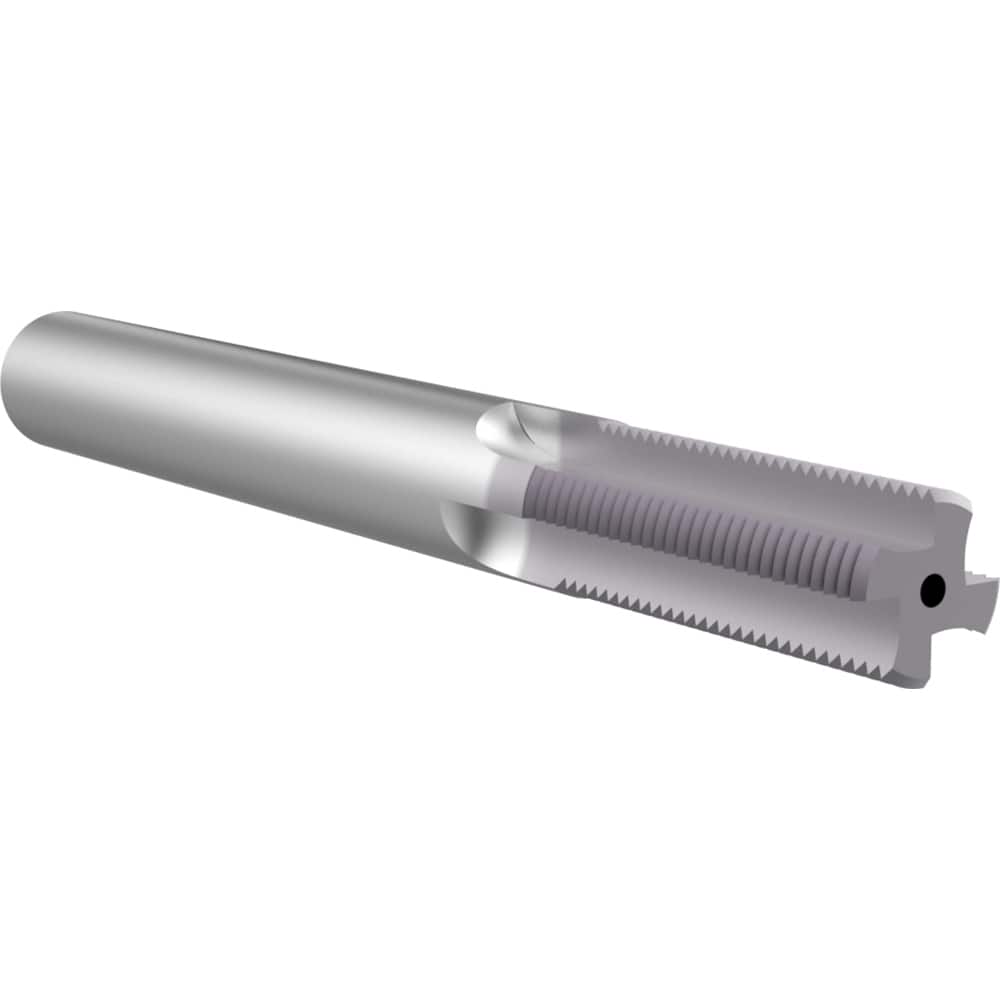

Allied Machine and Engineering - Helical Flute Thread Mills Pitch (mm): 14.00 Material: Carbide
Item #: 18419903
Brand: Allied Machine and Engineering
Model #: TM14BSWCH
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat resistant and used for high speed applications on stainless steels, nickel and titanium alloys.
Product Specifications
Helical Flute Thread Mills; Pitch (mm): 14.00 ; Material: Carbide ; Thread Size (Inch): 7/16 ; Thread Type: Internal/External ; Shank Diameter (Decimal Inch): 0.3120 ; Number of Flutes: 5
| Pitch (mm) | 14.00 |
| Material | Carbide |
| Thread Size (Inch) | 7/16 |
| Thread Type | Internal/External |
| Shank Diameter (Decimal Inch) | 0.3120 |
| Number of Flutes | 5 |
| Cutting Diameter (Decimal Inch) | 0.3110 |
| Length of Cut (Decimal Inch) | 0.7150 |
| Finish/Coating | TiAlN |
| Through Coolant | Through Coolant |
| Overall Length (Inch) | 3 |
| Thread Standard | BSW |
