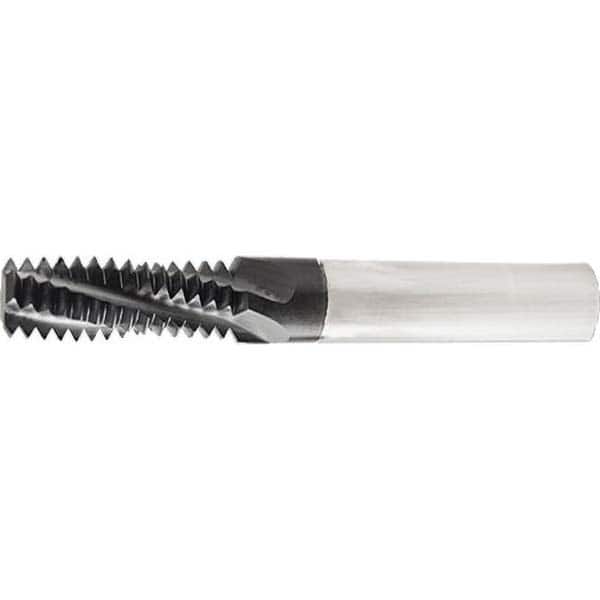

Cleveland - Helical Flute Thread Mills Threads Per Inch: 18 Material: Carbide
Item #: 18102269
Brand: Cleveland
Model #: C95038
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat resistant and used for high speed applications on stainless steels, nickel and titanium alloys.
Product Specifications
Helical Flute Thread Mills; Threads Per Inch: 18 ; Material: Carbide ; Thread Type: Internal/External ; Shank Diameter (Inch): 0.5 ; Shank Diameter (mm): 12.7000 ; Number of Flutes: 5
| Threads Per Inch | 18 |
| Material | Carbide |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 0.5 |
| Shank Diameter (mm) | 12.7000 |
| Number of Flutes | 5 |
| Cutting Diameter (Decimal Inch) | 0.4700 |
| Cutting Diameter (mm) | 11.94 |
| Length of Cut (Inch) | 1.25 |
| Finish/Coating | TiAlN |
| Through Coolant | Through Coolant |
| Minimum Nominal Diameter (Decimal Inch) | 0.4700 |
| Overall Length (Inch) | 3 -1/2 |
| Shank Length (Inch) | 0.5 |
| Flute Direction | Left/Right Hand |
| Material Grade | Sub Micrograin |
| PSC Code | 5133 |
