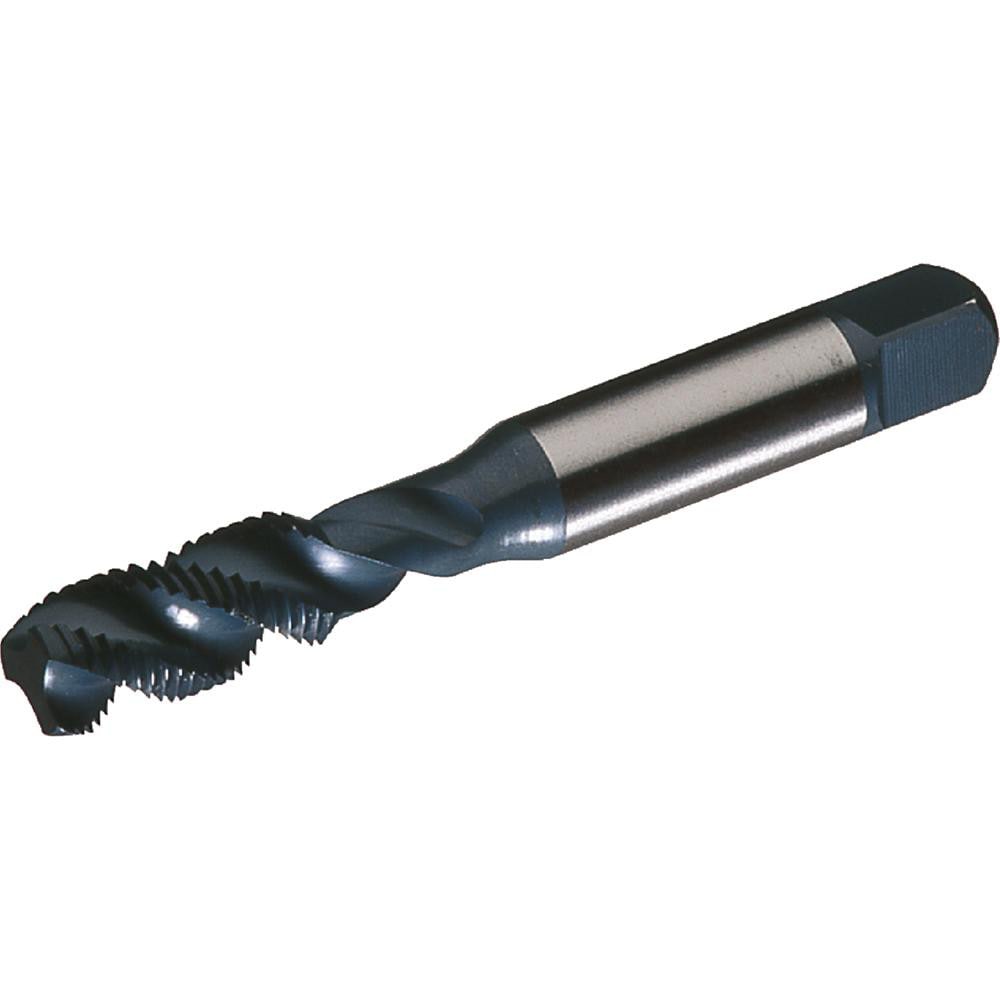

Brand: Widia / Part #: 2748002
Item #: 97473391
Brand: Widia
Model #: 2748002
Product Specifications
| Thread Size (Inch) | 1/2-20 |
| Chamfer | Bottoming |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 1.6562 |
| Overall Length (Decimal Inch) | 3.3750 |
| Thread Depth (Decimal Inch) | 1.6562 |
| Thread Pitch (Decimal Inch) | 0.0500 |
| Thread Standard | UNF |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Material Application | Steel |
| Series | 5344 |
