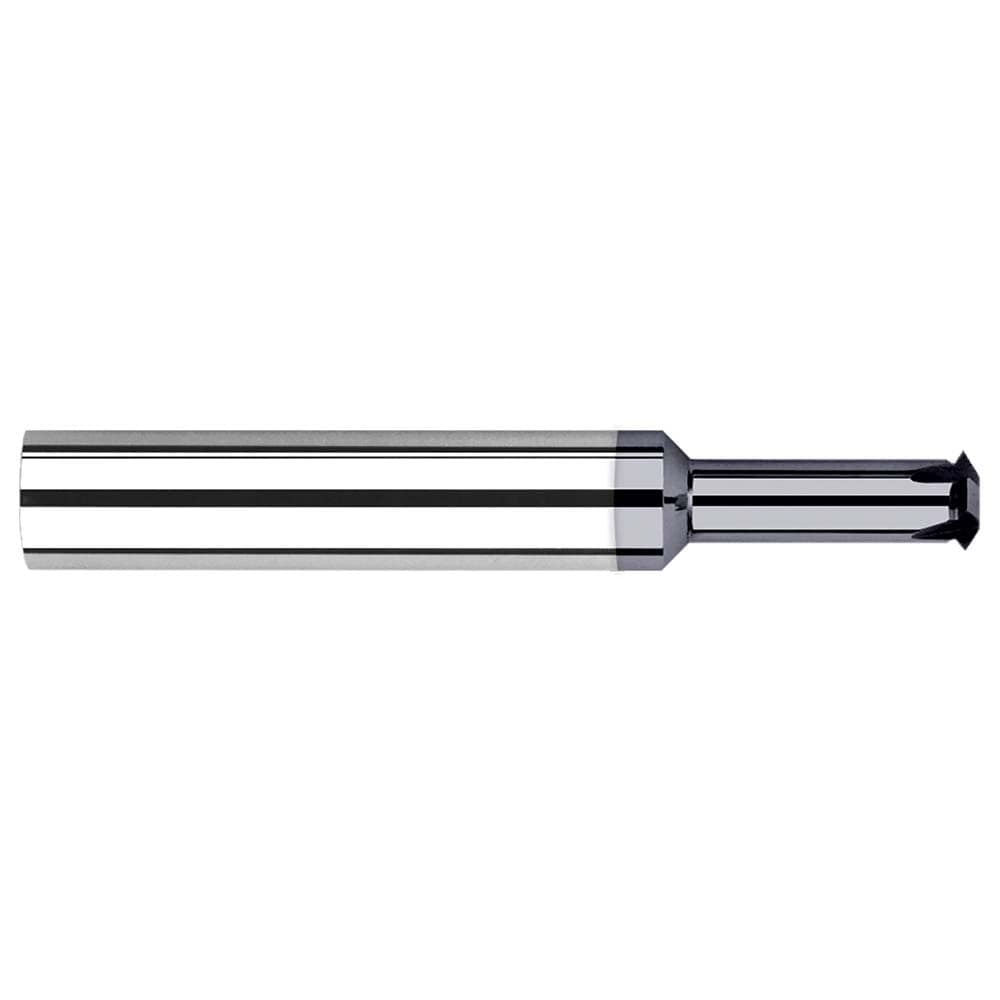

Brand: Harvey Tool / Part #: 993945-C3

Brand: Harvey Tool / Part #: 993945-C3


Item #: 82498817
Brand: Harvey Tool
Model #: 993945-C3

Product Specifications

Maximum Threads Per Inch 56
Minimum Pitch (Decimal Inch) 0.0417
Minimum Threads Per Inch 24
Maximum Pitch (Decimal Inch) 0.0179
Material Solid Carbide
Thread Type Internal/External
Thread Size #12-24 - #12-56
Thread Depth (Decimal Inch) 1.1250
Shank Diameter (Inch) 1/4
Cutting Diameter (Decimal Inch) 0.1600
Minimum Nominal Diameter (Inch) #12
Overall Length (Decimal Inch) 2.5000
Overall Length (Inch) 2-1/2
Neck Diameter (Decimal Inch) 0.0950
Shank Length (Decimal Inch) 1.3750
Series Thread Milling Cutters - Single Form - UN Threads
Thread Standard UN 60 Degree
Number Of Flutes 4
Coating/Finish AlTiN
$96.13
