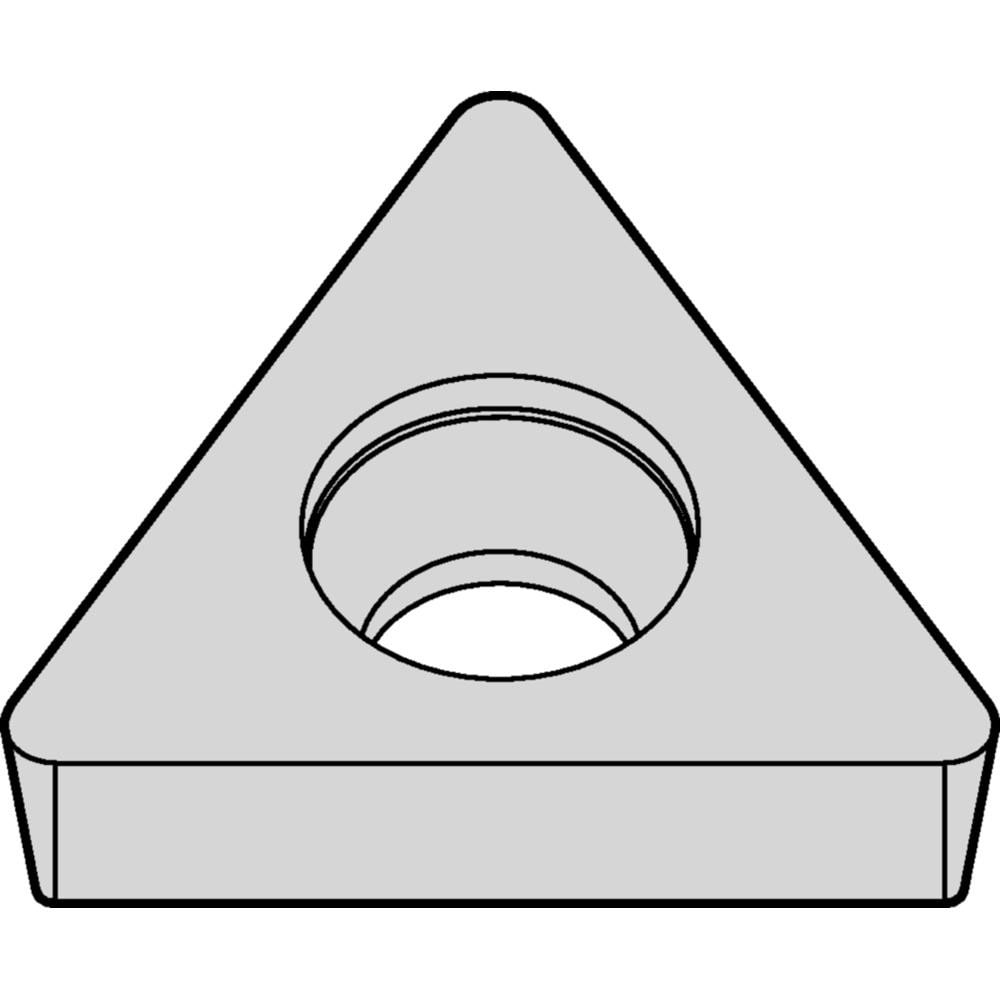

Brand: Widia / Part #: 2007055
Item #: 94005857
Brand: Widia
Model #: 2007055
Product Specifications
| Insert Style | TCMW |
| Insert Shape Code | T |
| Insert Size Code | 2152 |
| Insert Shape | Triangle |
| Coating/Finish | Uncoated |
| Manufacturer Grade | PB250 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.2166 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Clearance Code | C |
| Tolerance Code | M |
| Included Angle | 60.00 |
| Relief Angle | 7.000 |
| Series | TCMW |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4331 |
| Number Of Cutting Edges | 3 |
| Ansi Code | TCMW2152F1A30 |
| Iso Code | TCMW110208F1A30 |
| Manufacturers Catalog Number | TCMW2152F1A30 |
| Cutting Direction | Neutral |
| Single or Multi Tipped | Multi Tipped |
| Coating Classification | Uncoated |
| Chip Breaker | None |
| Cutting Edge Style | Sharp |
| Style | TCMW |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
