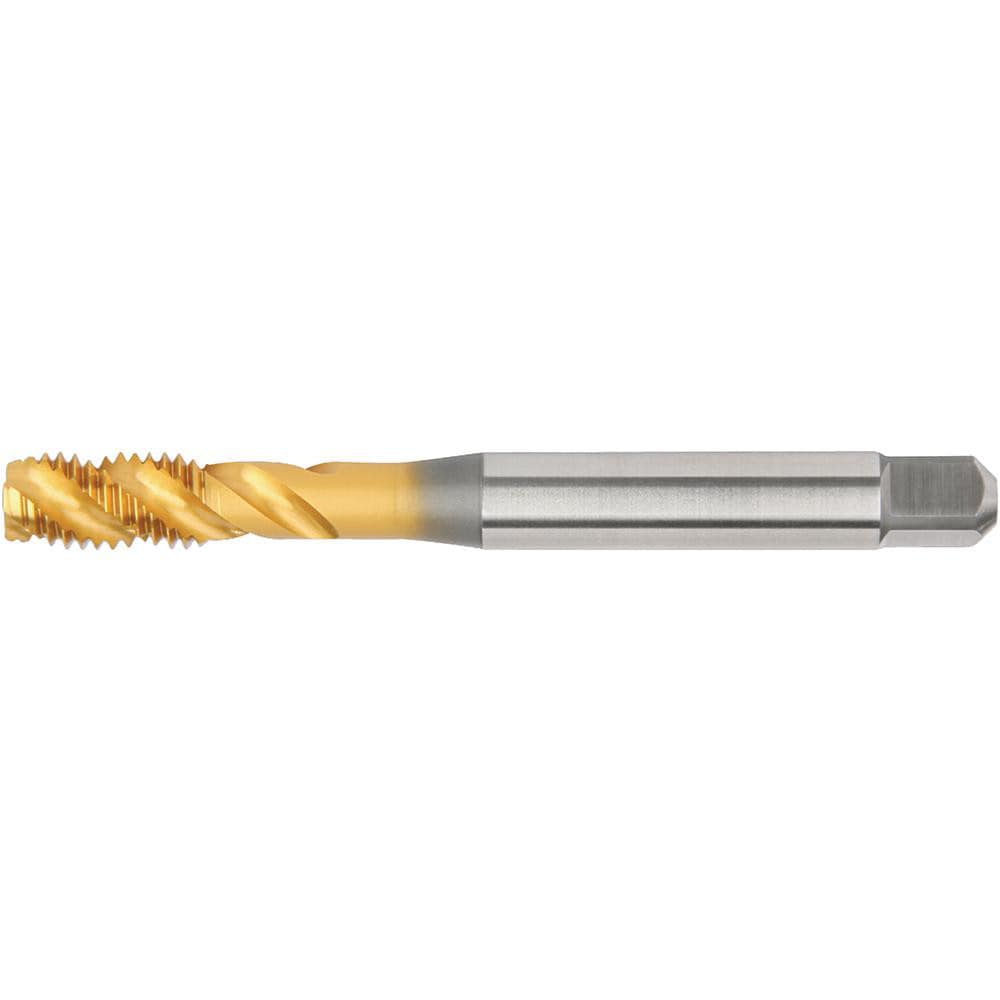

Brand: Widia / Part #: 6172794
Item #: 97606362
Brand: Widia
Model #: 6172794
Product Specifications
| Thread Size (Inch) | 1/4-20 |
| Chamfer | Plug |
| Thread Limit | H5 |
| Class Of Fit | 2B |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.3900 |
| Overall Length (Decimal Inch) | 3.1500 |
| Thread Depth (Decimal Inch) | 1.1500 |
| Thread Pitch (Decimal Inch) | 0.0500 |
| Thread Standard | UNC |
| Material Grade | WU41EG |
| Shank Diameter (Decimal Inch) | 0.2756 |
| Square Size (Decimal Inch) | 0.2170 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
