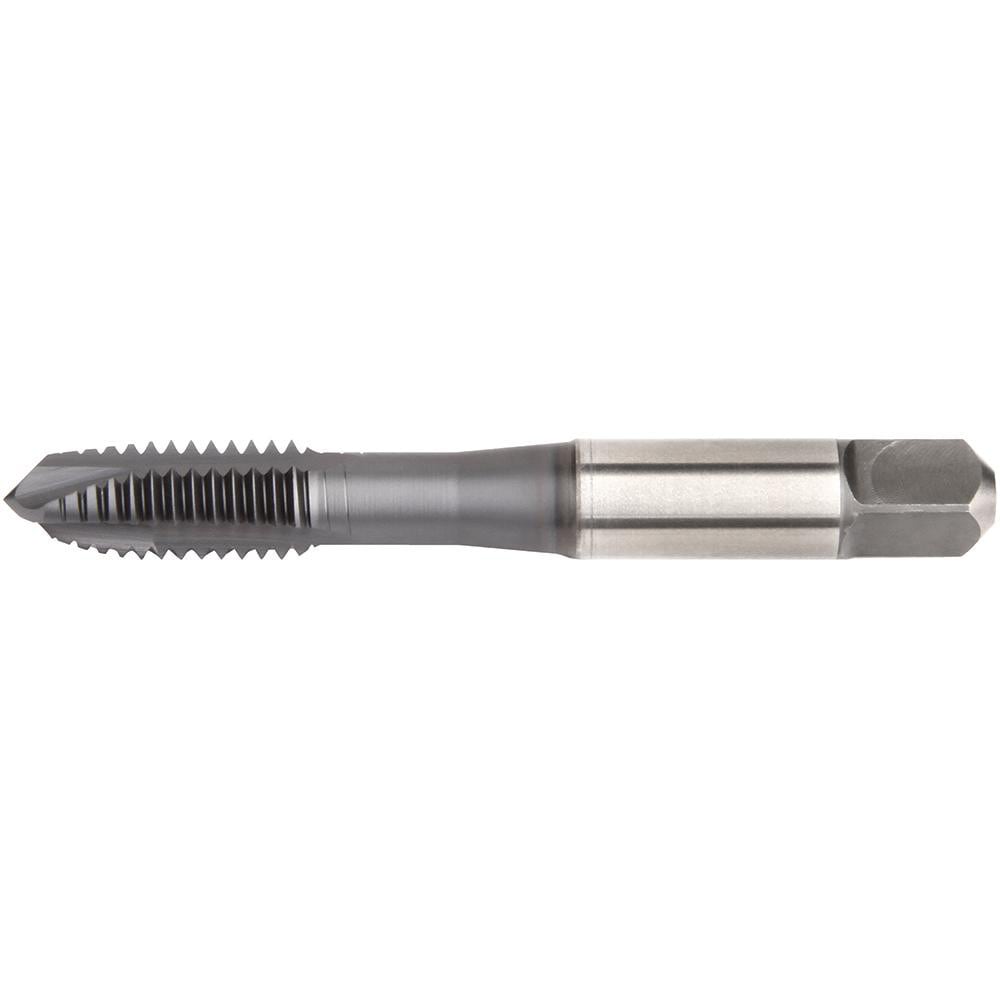

Brand: Widia / Part #: 5367351
Item #: 14121321
Brand: Widia
Model #: 5367351
Product Specifications
| Thread Size (mm) | M12x1.5 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | D6 |
| Class Of Fit | D6 |
| Coating/Finish | TiCN |
| Threads per Inch | 17 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 44.20 |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | UNC |
| Material Grade | WP42EG |
| Thread Length (mm) | 23.90 |
| Overall Length (mm) | 85.9000 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Length (mm) | 11.20 |
| Square Size (mm) | 6.91 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
