Brand: Widia / Part #: 2009609

Brand: Widia / Part #: 2009609


Item #: 99731812
Brand: Widia
Model #: 2009609

Product Specifications

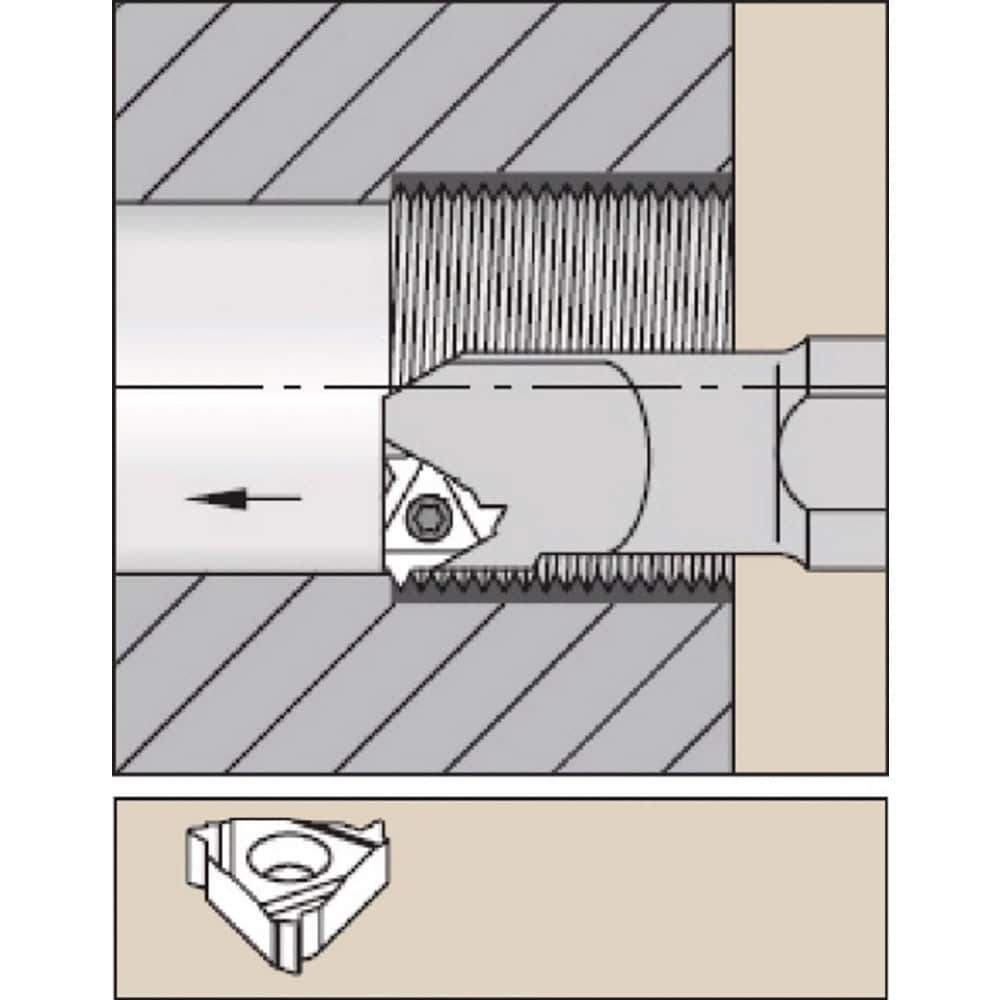

Thread Type Internal
Hand of Holder Right Hand
Compatible Insert Size Code 3
Shank Width/Diameter (mm) 20.00
Toolholder Style AVR
Insert Compatibility 3IR
Coolant Entry Style Code 0-Without Coolant
Insert Holding Method Screw
Shank Height (mm) 18.00
Shank Length (mm) 130.000
Overall Length (mm) 180.0000
Minimum Bore Diameter (mm) 24.00
Series AVR
Multi-use Tool No
Cutting Tool Application Threading
Head Length (mm) 50.00
Maximum Depth of Cut (mm) 1.40
Adjustable Overhang Yes
Back of Bar to Cutting Edge (mm) 23.40
Center to Cutting Edge (mm) 13.40
Insert Inscribed Circle (Decimal Inch) 0.3750
Insert Inscribed Circle (Inch) 3/8
Insert Inscribed Circle (mm) 9.53
Primary Workpiece Material Code P; S; H; K; M; N; O
Toolholder Material Steel
Coolant Through No
$123.26
