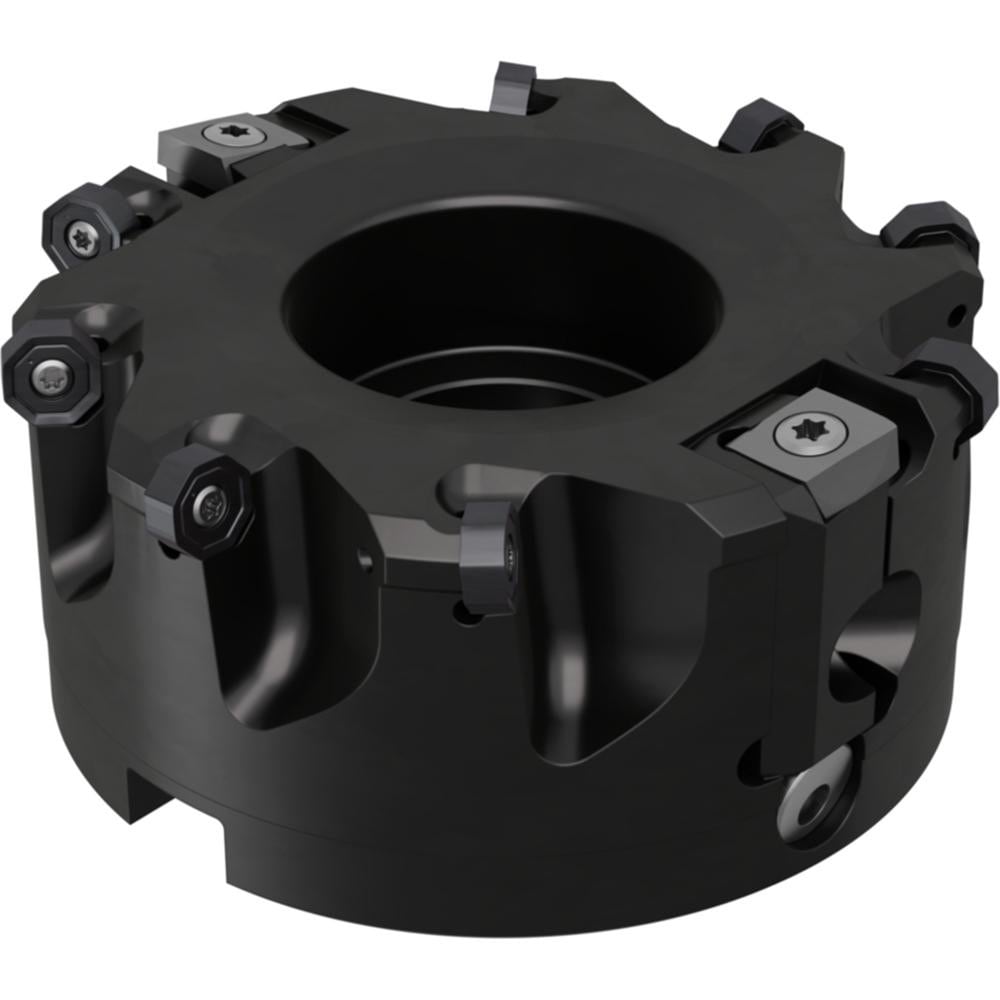

Brand: Widia / Part #: 5626417
Item #: 99559080
Brand: Widia
Model #: 5626417
Product Specifications
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (mm) | 106.45 |
| Maximum Depth of Cut (mm) | 2.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 42.000 |
| Compatible Insert Size Code | 1004 |
| Cutter Style | M1600 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | M1600 |
| Hub Diameter (mm) | 99.970 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Maximum Body Diameter (Decimal Inch) | 4.0303 |
| Maximum Body Diameter (mm) | 102.37 |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | XDHX |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | M1600D100Z10W2S32ON04 |
| Number Of Cutter Inserts | 10 |
| Coolant Through | No |
| Number Of Flutes | 10 |
