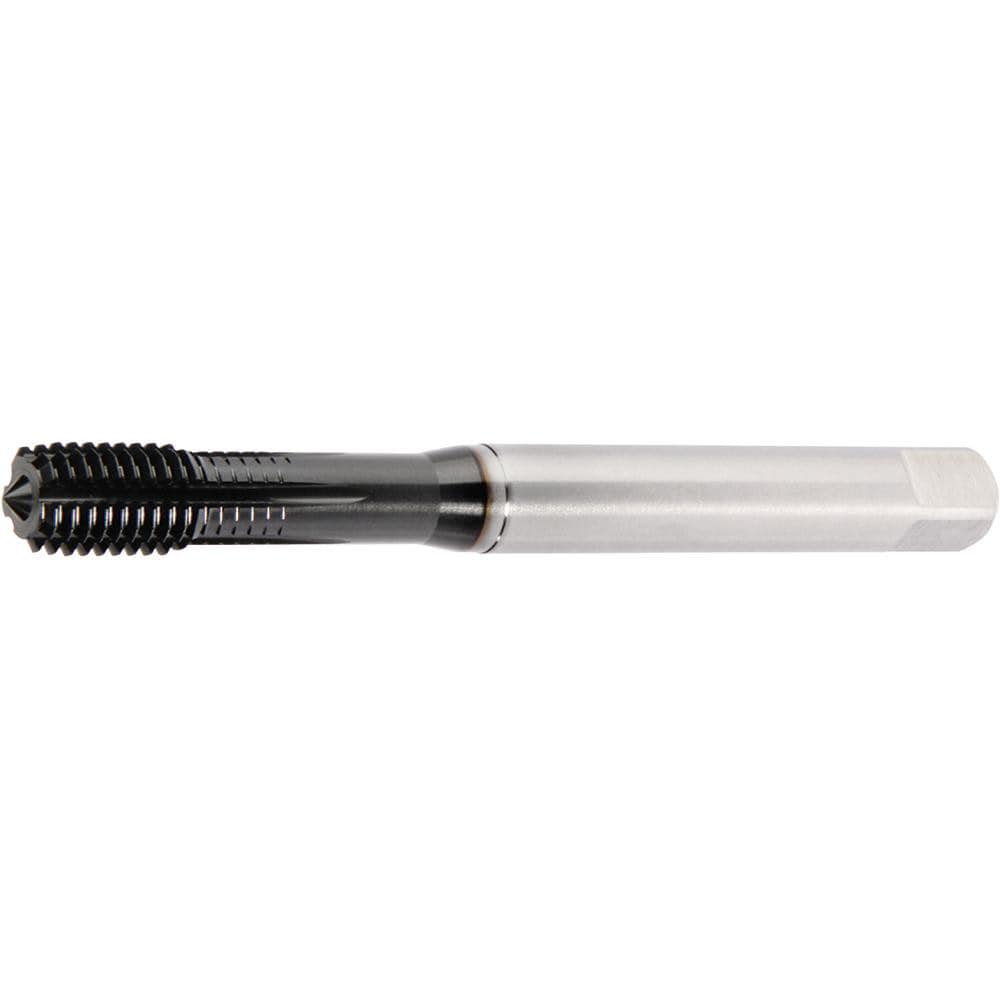

Brand: Widia / Part #: 4154679
Item #: 99320830
Brand: Widia
Model #: 4154679
Product Specifications
| Thread Size (mm) | M8x1 |
| Overall Length (mm) | 90.0000 |
| Chamfer | Semi-Bottoming |
| Coating/Finish | DLC |
| Thread Pitch (mm) | 1.00 |
| Thread Standard | Metric Fine |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 10.00 |
| Thread Depth (mm) | 35.00 |
| Thread Depth | 35.0000 |
| Shank Diameter (mm) | 8.0000 |
| Neck Length | 25.00 |
| Square Length (mm) | 9.00 |
| Material Application | Non-Ferrous Metals |
| Application | Metal |
| Series | GT22 |
| Tap Type | Blind |
| Tapping Depth (mm) | 35.00 |
| Shank Length (mm) | 55.000 |
| Square Size (mm) | 6.20 |
| Threads per Inch | 25 |
| Class Of Fit | 6HX |
| Coolant Through | No |
