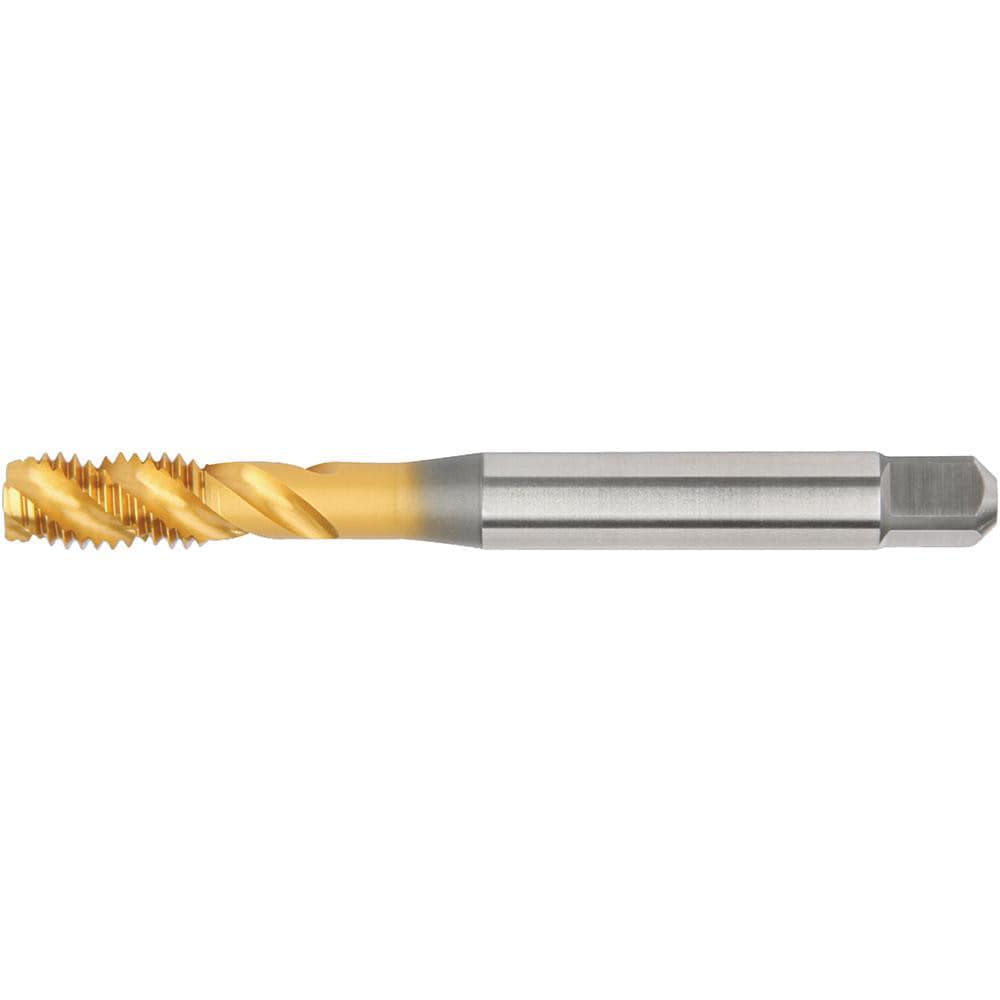

Brand: Widia / Part #: 5472625
Item #: 97244271
Brand: Widia
Model #: 5472625
Product Specifications
| Thread Size (Inch) | 5/8-11 |
| Chamfer | Modified Bottoming |
| Thread Limit | H5 |
| Class Of Fit | 2B |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 11 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.9400 |
| Overall Length (Decimal Inch) | 4.3300 |
| Thread Depth (Decimal Inch) | 1.3800 |
| Thread Pitch (Decimal Inch) | 0.0909 |
| Thread Standard | UNC |
| Material Grade | WU41EG |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Square Size (Decimal Inch) | 0.3540 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
