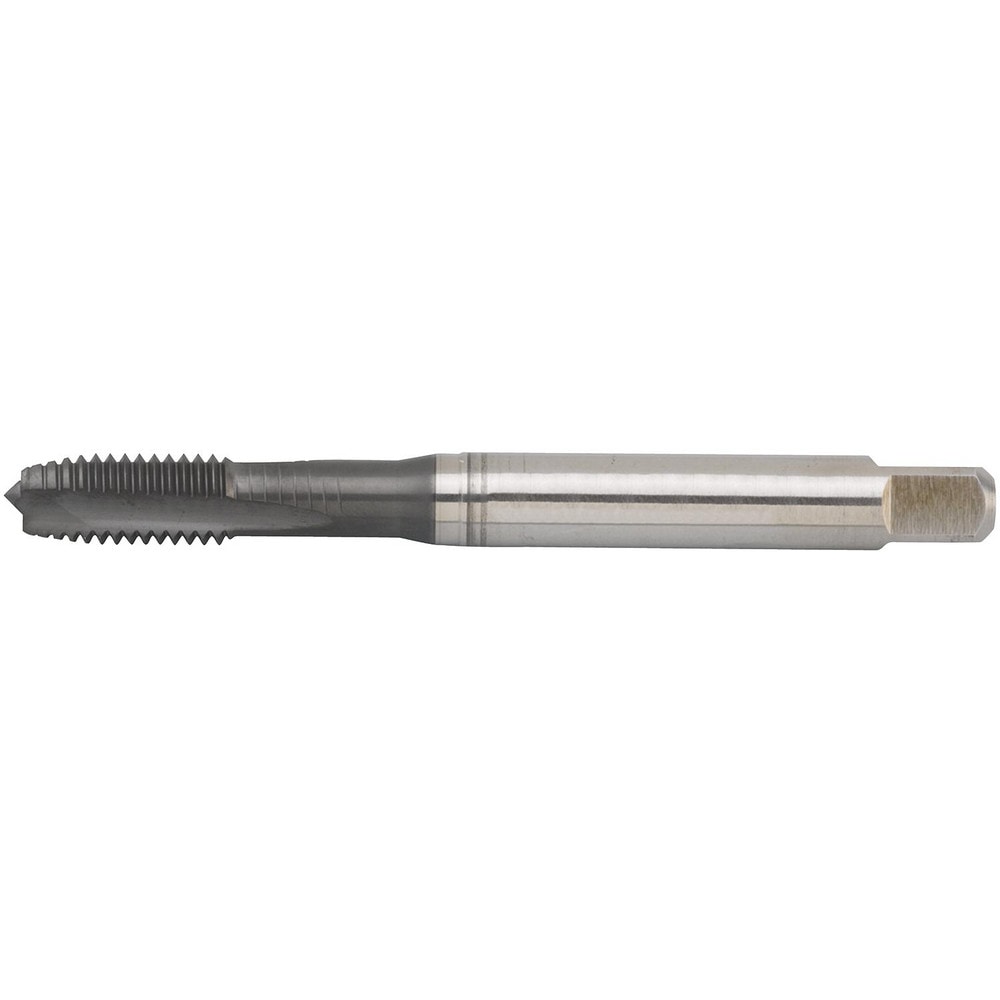

Brand: Widia / Part #: 4160098
Item #: 93310373
Brand: Widia
Model #: 4160098
Product Specifications
| Thread Size (mm) | M10x1.5 |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | 6HX |
| Class Of Fit | 6HX |
| Coating/Finish | TiN; DLC |
| Threads per Inch | 17 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 39.00 |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | UNC |
| Material Grade | WN35MG |
| Thread Length (mm) | 22.00 |
| Overall Length (mm) | 100.0000 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Square Length (mm) | 11.00 |
| Square Size (mm) | 8.00 |
| Material Application | High-Temperature Alloy |
| Series | GT14 |
