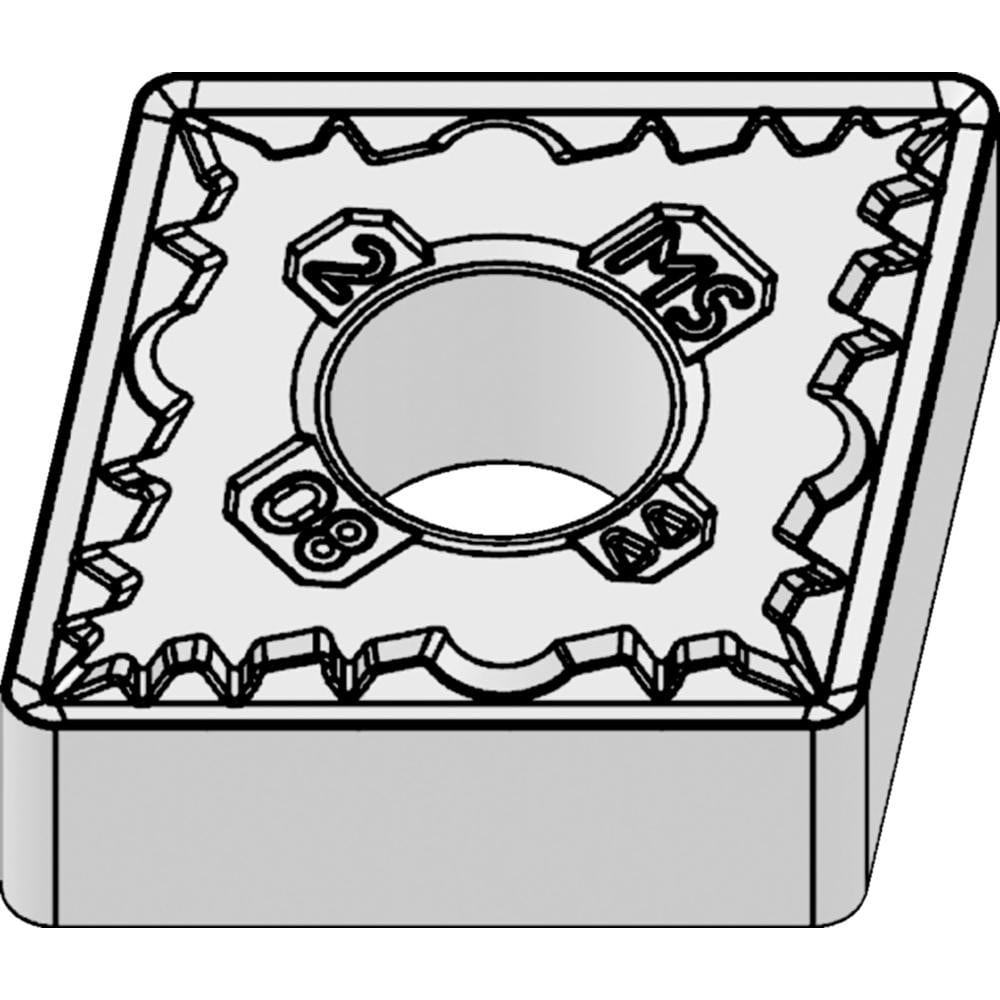

Brand: Widia / Part #: 5908763

Brand: Widia / Part #: 5908763


Item #: 95965307
Brand: Widia
Model #: 5908763

Product Specifications

Insert Style CNMG
Insert Shape Code C
Insert Size Code 643
Insert Shape Diamond
Coating/Finish AlTiSiN
Manufacturer Grade WS10PT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.3122
Maximum Depth of Cut (Decimal Inch) 0.3808
Inscribed Circle (Decimal Inch) 0.7500
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.2500
Clearance Code N
Tolerance Code M
Included Angle 80.00
Relief Angle 0.000
Series CNMG
Coating Process PVD
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.7616
Number Of Cutting Edges 8
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Stainless Steel; Steel
Secondary Workpiece Material Code P; M
Ansi Code CNMG643MS
Iso Code CNMG190612MS
Manufacturers Catalog Number CNMG643MS
Cutting Direction Neutral
Coating Classification PVD
Chip Breaker MS
Style CNMG
Width (Decimal Inch - 4 Decimals) 0.7500
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$28.35
