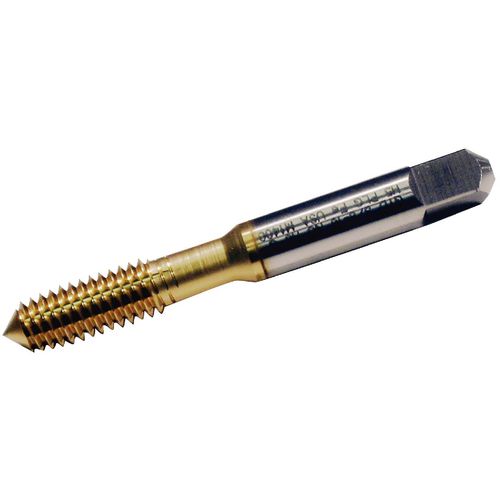

18761 5912 M8X1.25 D9 FE BOTT TICN
Item #: WK302747099
Brand: Widia
Model #: 2747099
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coating | TiCN |
| Thread Diameter Size (TDZ) | M8 |
| Coolant Supply Property (CSP) | External |
| Thread Pitch (TP) | 1.25 mm |
| Chamfer | 1P-2P |
| Overall Length (OAL) | 2.72″ |
| Style | Bottoming |
| Thread Cutting Part Length (THL) | 11/16″ |
| Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1.128″ |
| Series/List # | TRU-LEDE |
| Connection Diameter Machine Side (DCONMS) | 0.318″ |
| Shank Type | Round w/ Drive Square |
| Thread Standard | Metric |
| Thread Size | M8 × 1.25 |
