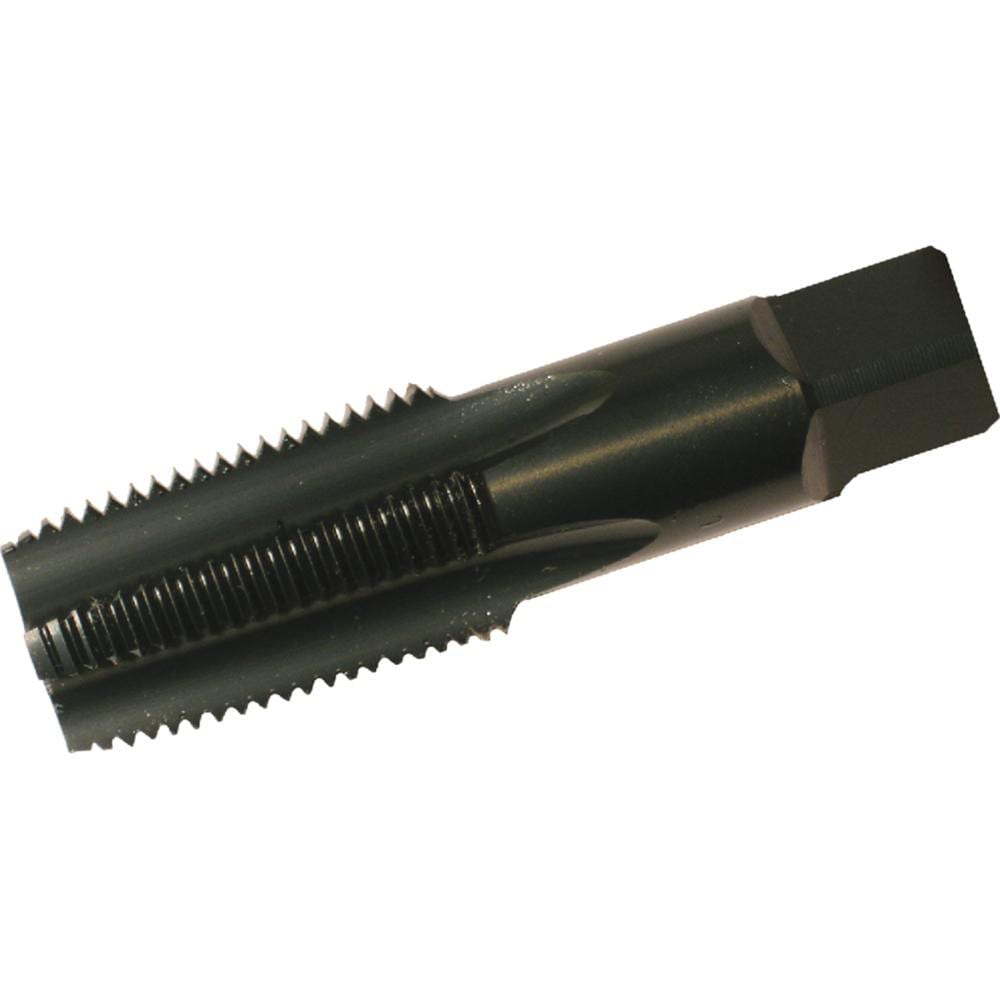

Brand: Widia / Part #: 2746361
Item #: 90225871
Brand: Widia
Model #: 2746361
Product Specifications
| Thread Standard | NPTF |
| Material | High Speed Steel |
| Overall Length (Inch) | 3-1/4 |
| Threads per Inch | 14 |
| Thread Size (Inch) | 3/4-14 |
| Application | Metal |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Shank Diameter (Decimal Inch) | 0.9063 |
| Square Size (Decimal Inch) | 0.6790 |
| Chamfer | Plug |
| Series | 5320 |
| Thread Length (Decimal Inch) | 1.3750 |
| Coating/Finish | TiN |
| Thread Pitch (Decimal Inch) | 0.0714 |
| Square Length (Decimal Inch) | 0.6900 |
| Thread Depth (Decimal Inch) | 1.3750 |
| Number Of Flutes | 5 |
