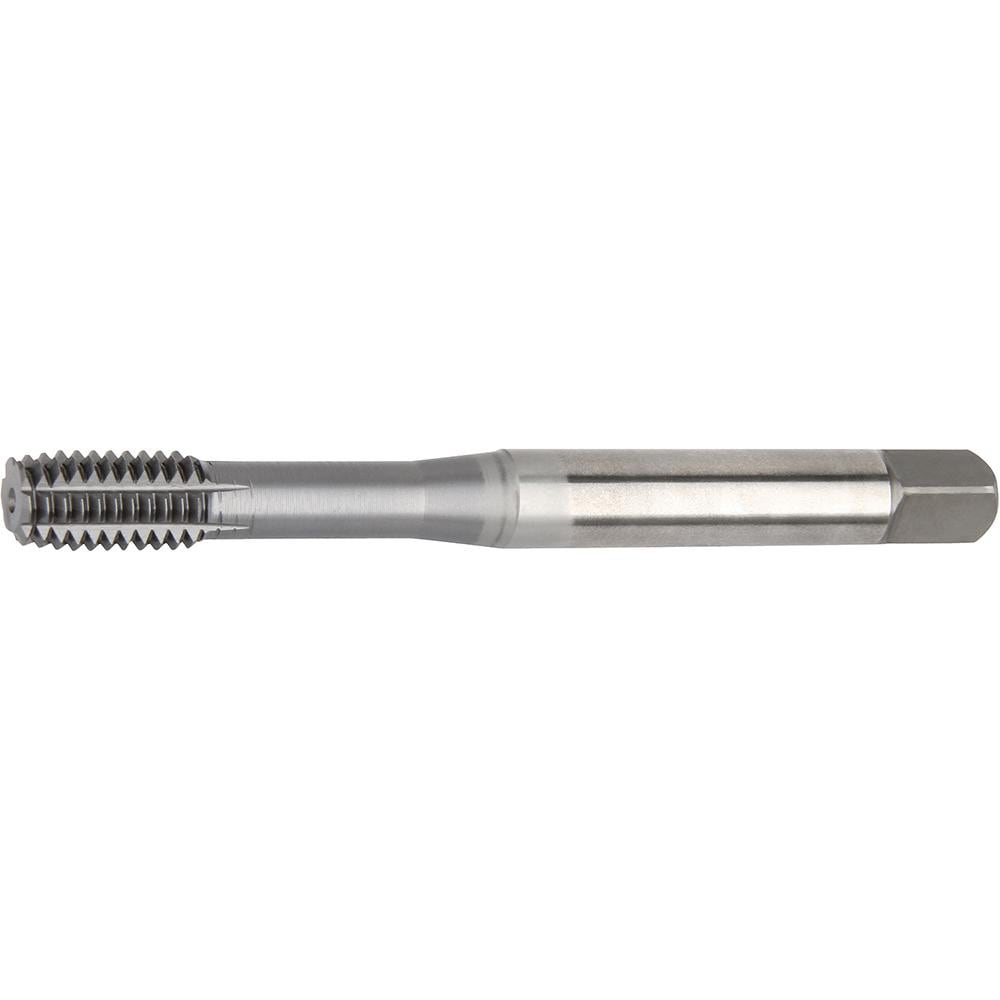

Brand: Widia / Part #: 5944923
Item #: 99310682
Brand: Widia
Model #: 5944923
Product Specifications
| Thread Size (Inch) | 1/4-20 |
| Overall Length (Decimal Inch) | 3.1500 |
| Chamfer | Bottoming |
| Coating/Finish | TiCN |
| Thread Limit | H6 |
| Thread Pitch (Decimal Inch) | 0.0500 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 0.5100 |
| Thread Depth | 1.1800 |
| Thread Depth (Decimal Inch) | 1.1800 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Neck Length (Decimal Inch) | 0.6700 |
| Square Length (Decimal Inch) | 0.3100 |
| Material Application | Stainless Steel |
| Application | Metal |
| Series | GT27 |
| Tap Type | Blind |
| Tapping Depth (Decimal Inch) | 1.1800 |
| Shank Length (Decimal Inch) | 1.6800 |
| Square Size (Decimal Inch) | 0.1890 |
| Threads per Inch | 20 |
| Class Of Fit | 2B |
| Coolant Through | Yes |
