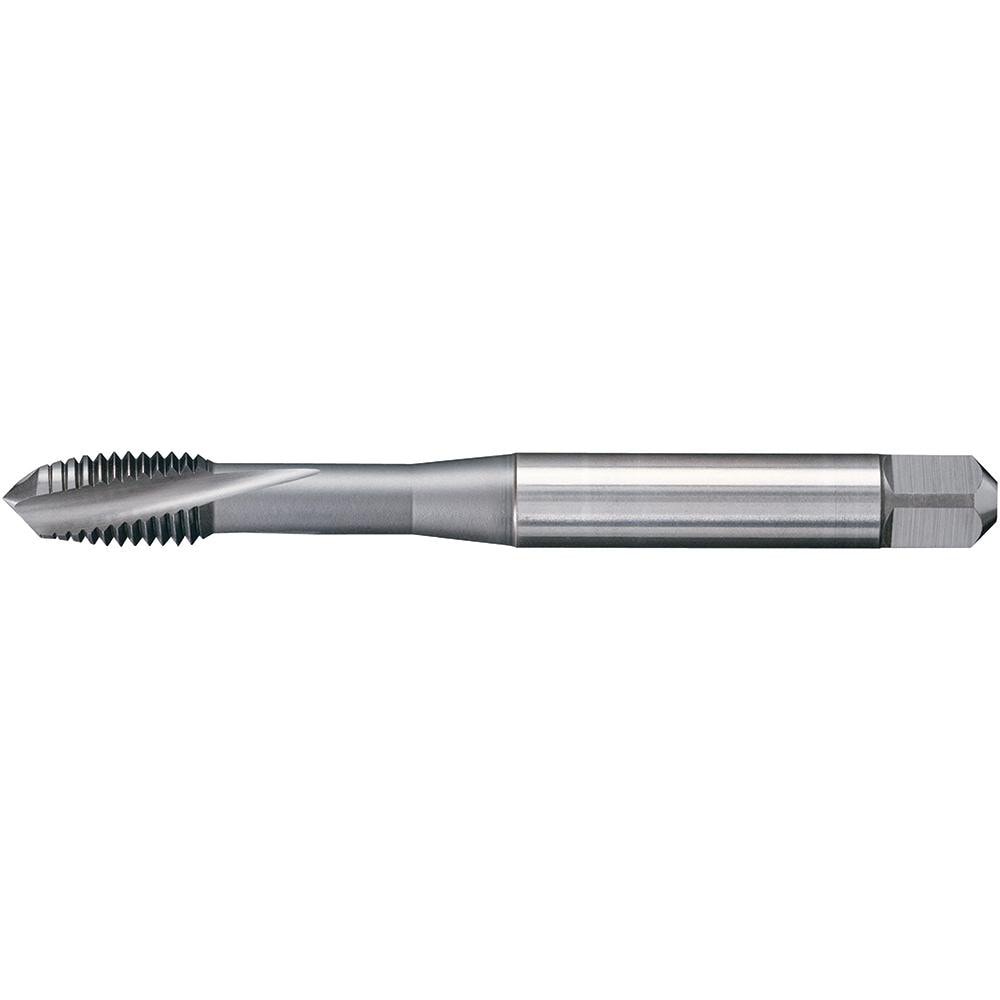

Brand: Widia / Part #: 3955089
Item #: 97535173
Brand: Widia
Model #: 3955089
Product Specifications
| Thread Size (mm) | M10x1.5 |
| Chamfer | Plug |
| Thread Limit | D8 |
| Class Of Fit | 6HX |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 17 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | TiCN |
| Thread Depth (mm) | 39.10 |
| Coolant Through | No |
| Thread Length (mm) | 15.10 |
| Overall Length (mm) | 100.1000 |
| Thread Pitch (mm) | 1.50 |
| Thread Standard | Metric |
| Material Grade | WU32MG |
| Shank Diameter (mm) | 10.0000 |
| Square Length (mm) | 11.00 |
| Square Size (mm) | 8.00 |
| Material Application | High-Temperature Alloy; Steel |
| Series | GT20 |
