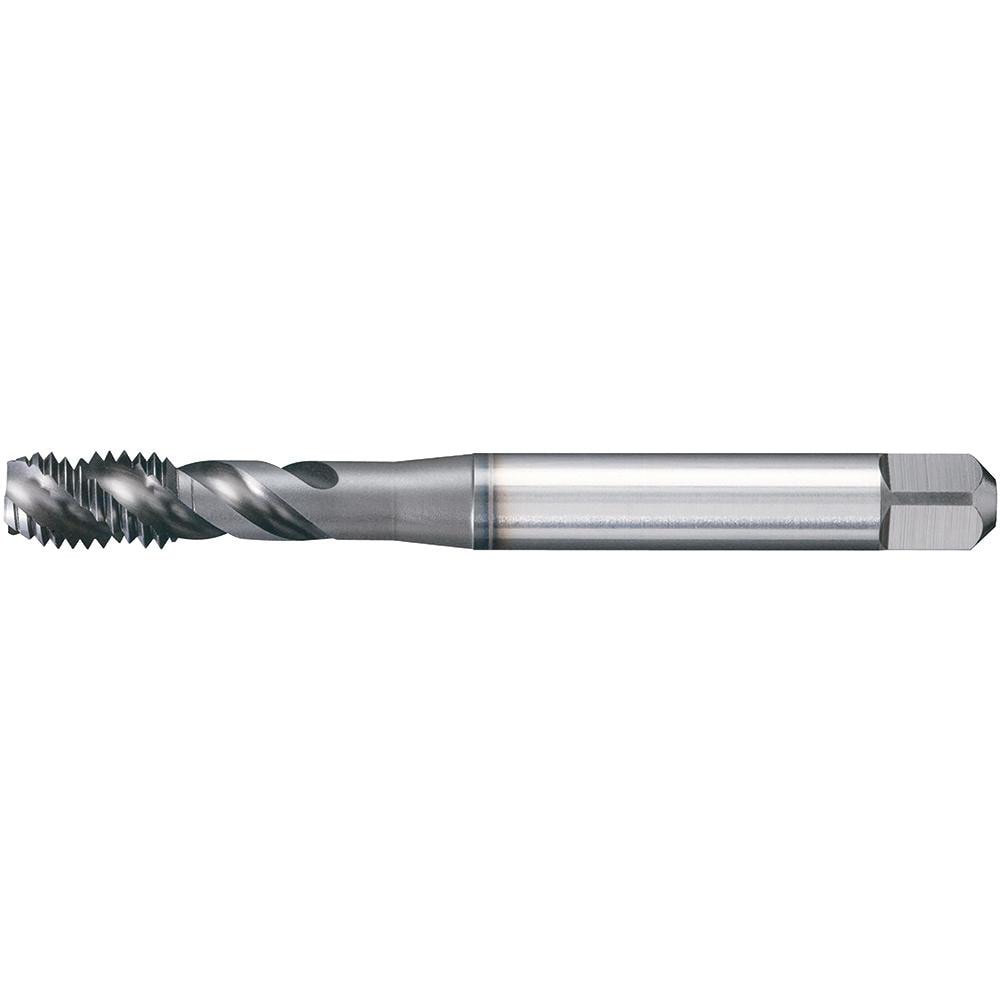

Brand: Widia / Part #: 3955104
Item #: 97601827
Brand: Widia
Model #: 3955104
Product Specifications
| Thread Size (mm) | M12x1.75 |
| Chamfer | Modified Bottoming |
| Thread Limit | D9 |
| Class Of Fit | 6HX |
| Number Of Flutes | 4 |
| Material | Powdered Metal |
| Threads per Inch | 15 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | C; CrC |
| Thread Depth (mm) | 44.00 |
| Coolant Through | No |
| Thread Length (mm) | 18.00 |
| Overall Length (mm) | 110.0000 |
| Thread Pitch (mm) | 1.75 |
| Thread Standard | Metric |
| Material Grade | WS34MG |
| Shank Diameter (mm) | 9.0000 |
| Square Length (mm) | 10.00 |
| Square Size (mm) | 7.00 |
| Material Application | Stainless Steel |
| Series | GT30 |
