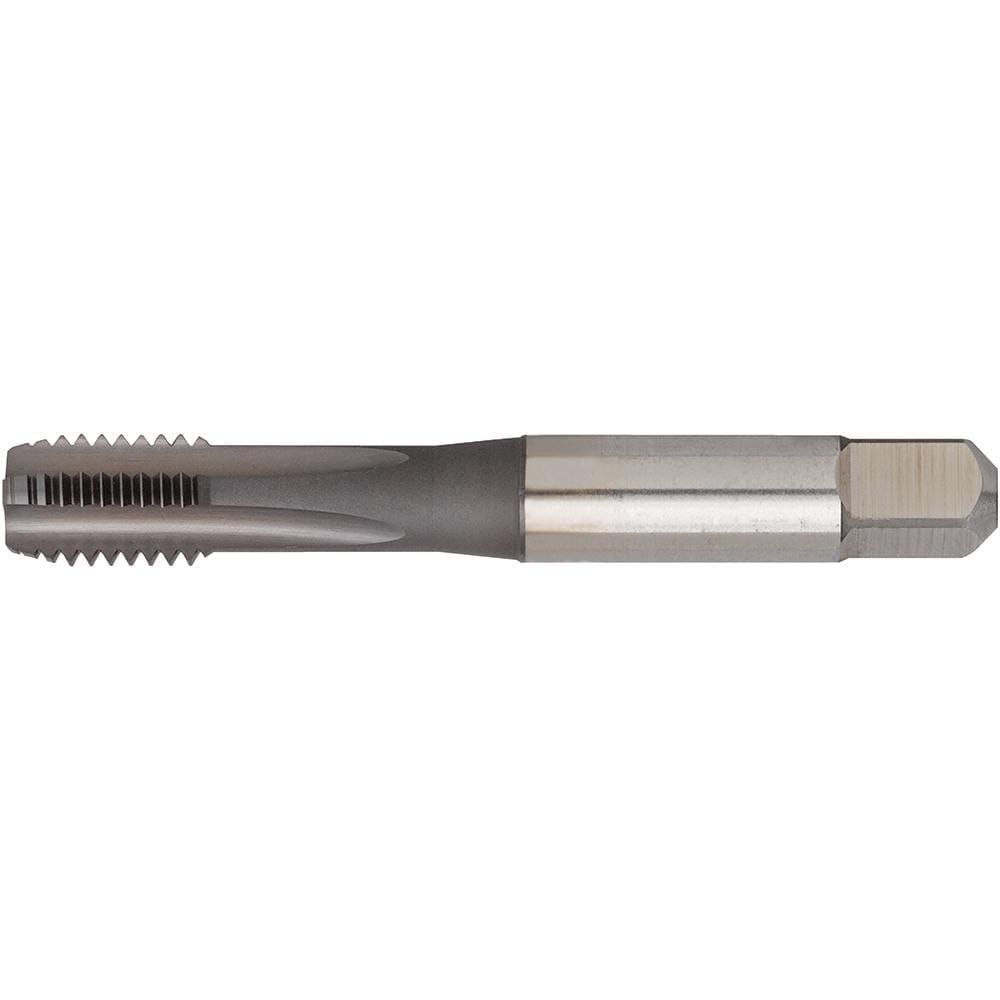

Brand: Widia / Part #: 4035569
Item #: 97288336
Brand: Widia
Model #: 4035569
Product Specifications
Tap Type | Machine |
Thread Size (Inch) | 1/2-13 |
Class Of Fit | 3BX |
Number Of Flutes | 4 |
Chamfer | Semi-Bottoming |
Material | High Speed Steel |
Coating/Finish | TiCN |
Threads per Inch | 13 |
Thread Direction | Right Hand |
Coolant Through | No |
Thread Standard | UNC |
Thread Pitch (Decimal Inch) | 0.0769 |
Overall Length (Decimal Inch) | 3.3800 |
Thread Length (Decimal Inch) | 0.7700 |
Material Grade | WU32MG |
Thread Depth (Decimal Inch) | 0.7700 |
Application | Metal |
Shank Diameter (Decimal Inch) | 0.3670 |
Tapping Depth (Decimal Inch) | 1.7400 |
Square Length (mm) | 11.20 |
Square Size (Decimal Inch) | 0.2790 |
Material Application | Cast Iron |
Series | GT40 |
Shank Length (Decimal Inch) | 1.7400 |
