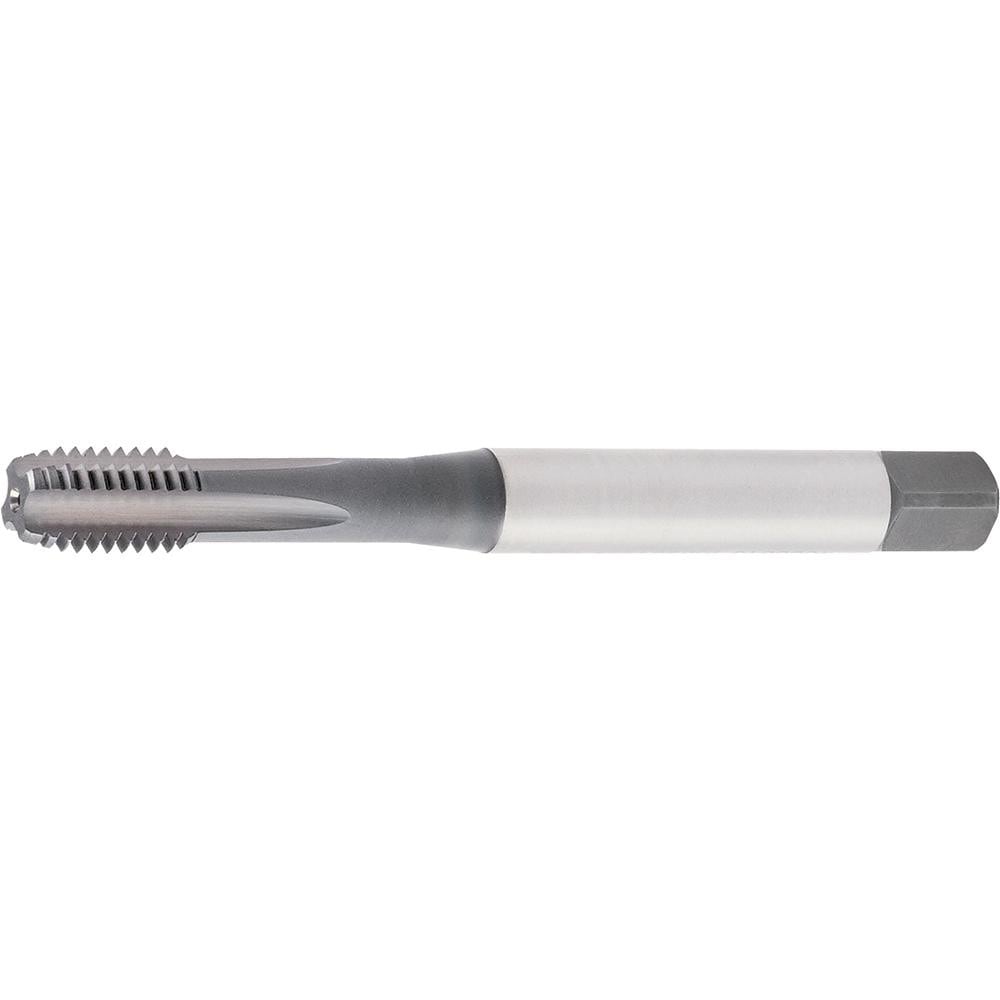

Brand: Widia / Part #: 4033660
Item #: 85349918
Brand: Widia
Model #: 4033660
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M5x0.8 |
| Class Of Fit | 6HX |
| Number Of Flutes | 3 |
| Chamfer | Semi-Bottoming |
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Threads per Inch | 31.7500 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 70.00 |
| Thread Pitch (mm) | 0.80 |
| Thread Length (mm) | 10.00 |
| Material Grade | WU32MG |
| Thread Depth (mm) | 10.00 |
| Application | Metal |
| Shank Diameter (mm) | 6.00 |
| Tapping Depth (mm) | 25.00 |
| Square Length (mm) | 8.00 |
| Square Size (mm) | 4.90 |
| Material Application | Cast Iron |
| Series | GT41 |
| Shank Length (mm) | 25.00 |
| Shank Length (Decimal Inch) | 2.3622 |
