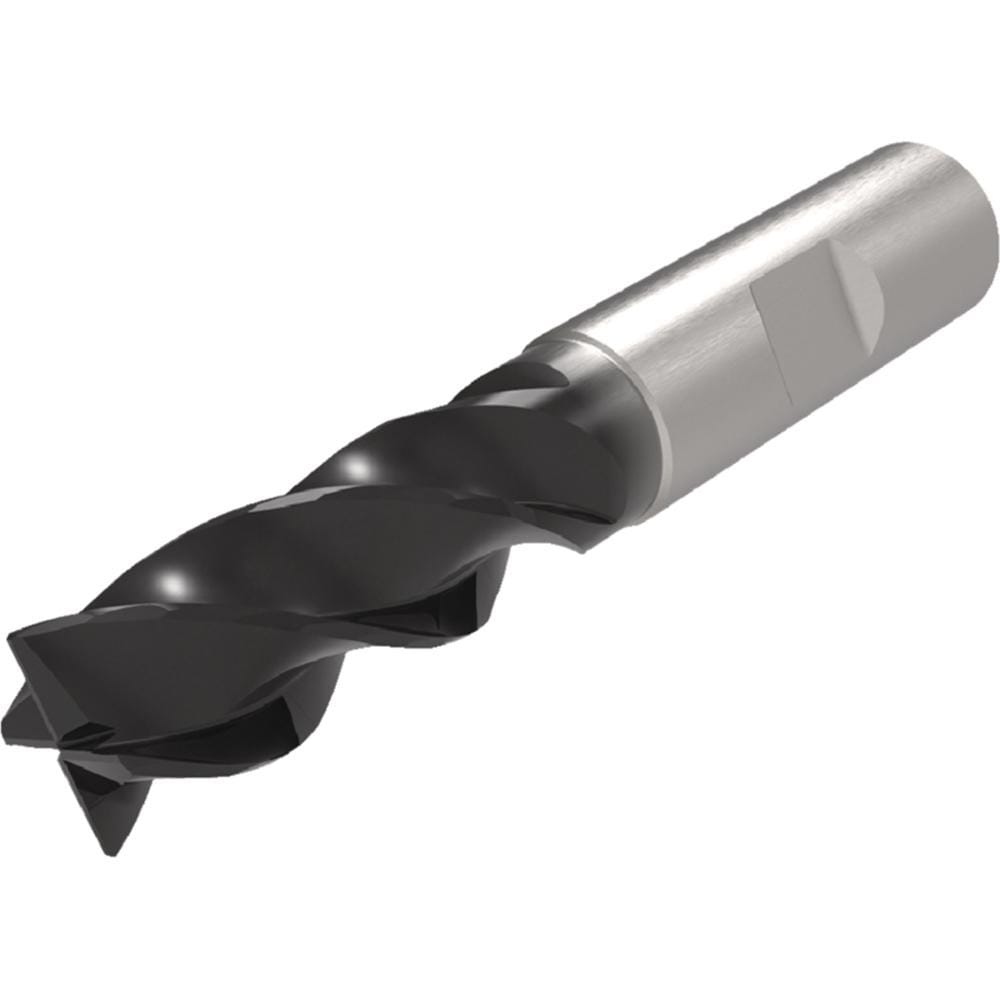

Brand: Widia / Part #: 6829694
Item #: 97933717
Brand: Widia
Model #: 6829694
Product Specifications
| Mill Diameter (mm) | 5.00 |
| Chamfer Width (mm) | 0.100 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (mm) | 57.0000 |
| Length of Cut (mm) | 13.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Helix Angle | 36 |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Regular |
| Flute Type | Variable |
| Extended Reach | Yes |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Material Removal Type | Finishing |
| Shank Diameter (mm) | 6.0000 |
| Neck Diameter (mm) | 4.700 |
| Reach Length (mm) | 18.00 |
| Minimum Helix Angle | 37 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | S; H; K; M |
| Secondary Workpiece Material | High Temperature Alloy |
| Secondary Workpiece Material Code | S |
| Material Grade | WS15PE |
| Series | 4XNE |
| Coating Classification | PVD |
| Chamfer Length (mm) | 0.10 |
| Helix Style | Variable |
