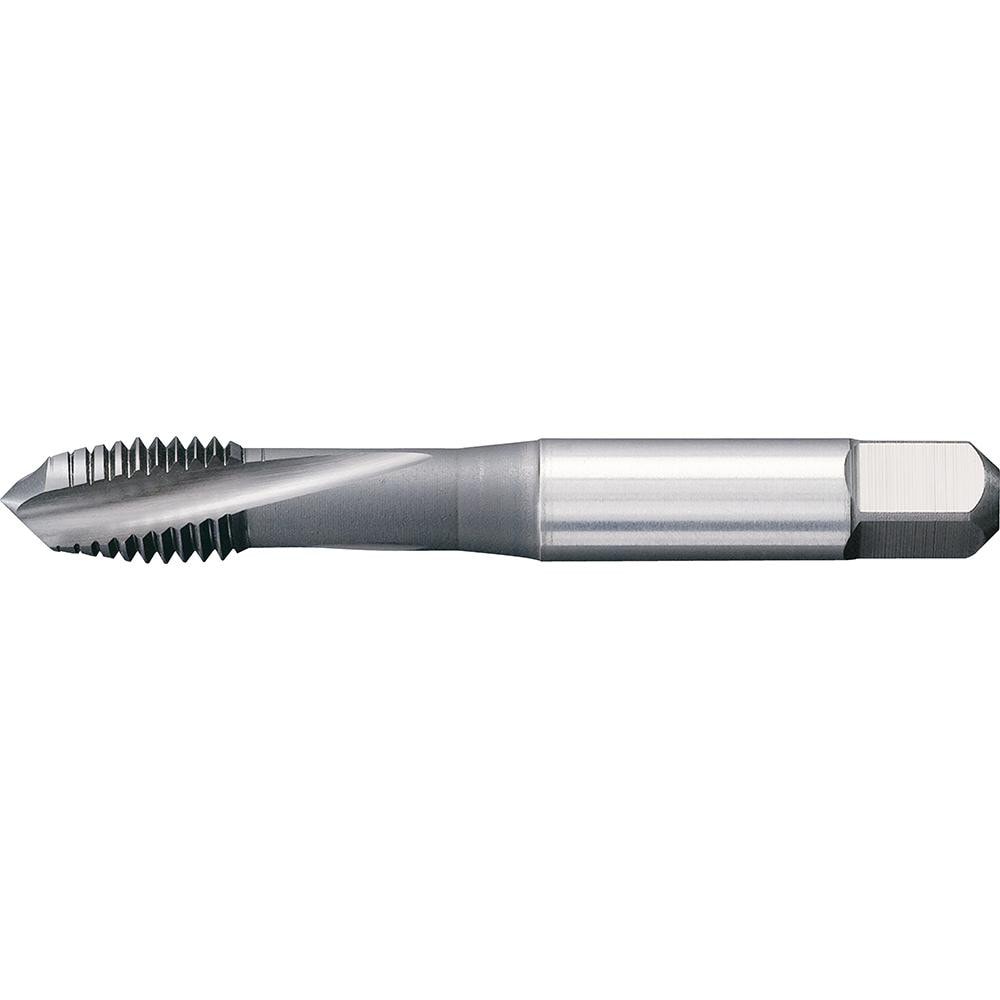

Brand: Widia / Part #: 3955003
Item #: 97442339
Brand: Widia
Model #: 3955003
Product Specifications
| Thread Size (Inch) | 5/16-24 |
| Chamfer | Plug |
| Thread Limit | H4 |
| Class Of Fit | 3BX |
| Number Of Flutes | 3 |
| Material | Powdered Metal |
| Threads per Inch | 24 |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Coating/Finish | TiCN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.4900 |
| Overall Length (Decimal Inch) | 2.7200 |
| Thread Depth (Decimal Inch) | 1.1300 |
| Thread Pitch (Decimal Inch) | 0.0417 |
| Thread Standard | UNF |
| Material Grade | WU32MG |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Size (Decimal Inch) | 0.2360 |
| Material Application | High-Temperature Alloy; Steel |
| Series | GT20 |
