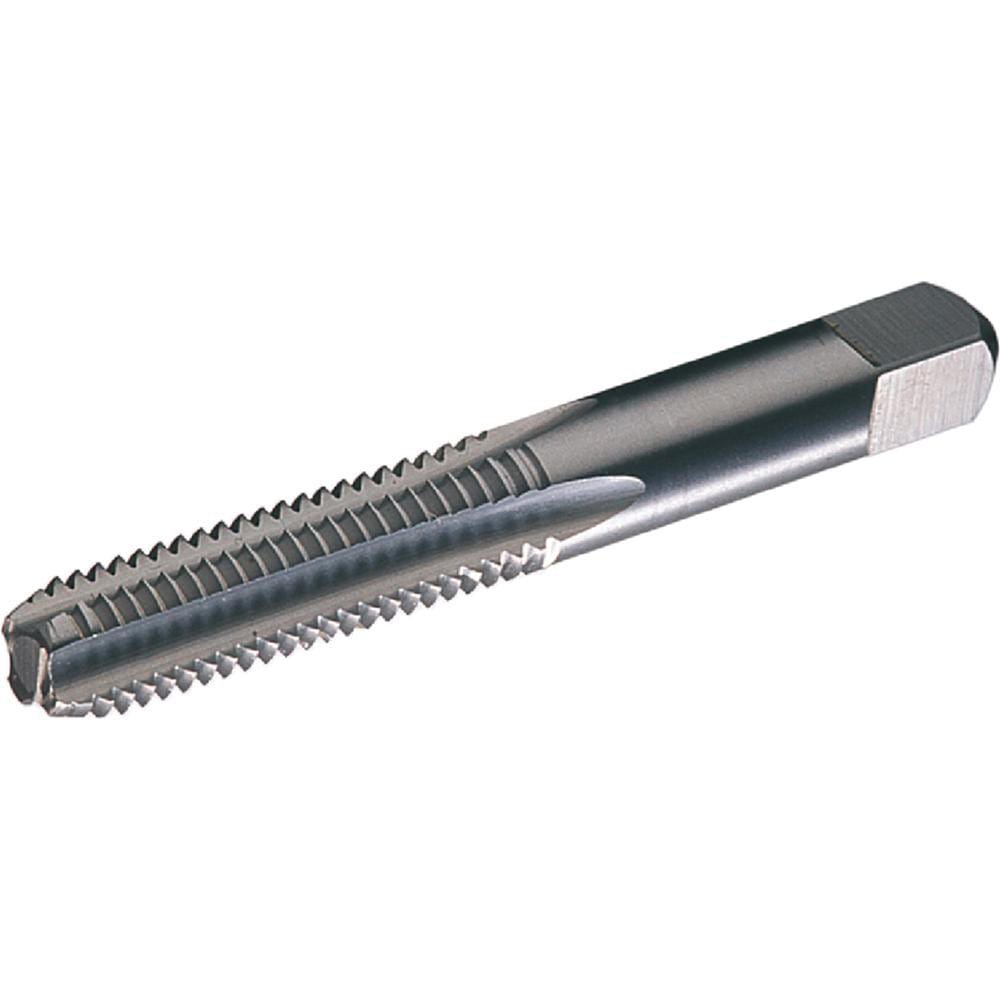

Brand: Widia / Part #: 2749386
Item #: 72384464
Brand: Widia
Model #: 2749386
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | 3/4-10 |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 4 |
| Chamfer | Taper |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 10 |
| Thread Direction | Left Hand |
| Coolant Through | No |
| Thread Standard | UNC |
| Thread Pitch (Decimal Inch) | 0.1000 |
| Overall Length (Decimal Inch) | 4.2500 |
| Thread Length (Decimal Inch) | 2.0000 |
| Thread Depth (Decimal Inch) | 2.0000 |
| Application | Metal |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Square Length (mm) | 17.46 |
| Square Size (Decimal Inch) | 0.4420 |
| Series | 5303 |
| Shank Length (Decimal Inch) | 2.2500 |
