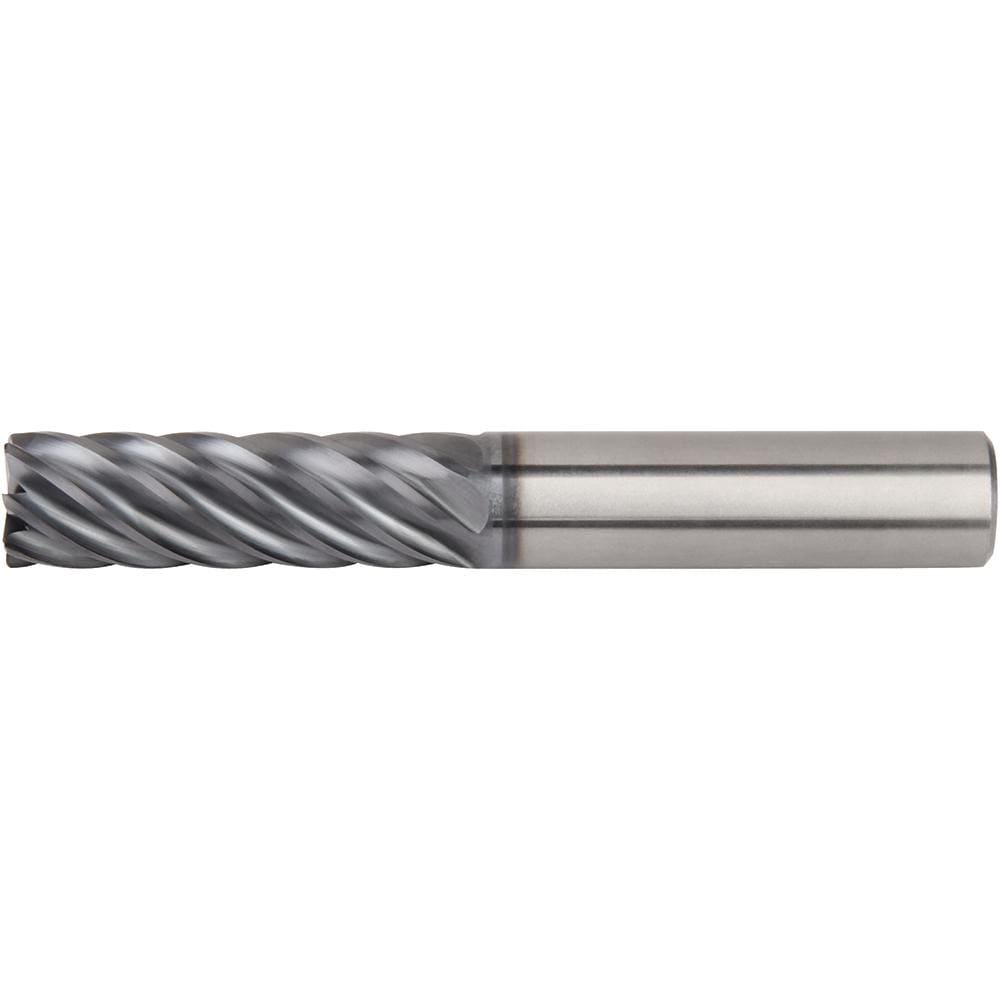

Brand: Widia / Part #: 5971453
Item #: 33966102
Brand: Widia
Model #: 5971453
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 7 |
| Overall Length (Inch) | 6 |
| Length of Cut (Inch) | 3-3/4 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 6.0000 |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 3.7500 |
| Length Type | Extended |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Safe-Lock |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Minimum Helix Angle | 38.00 |
| Maximum Helix Angle | 38.00 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Material Grade | WS15PE |
| Series | 7V2E |
