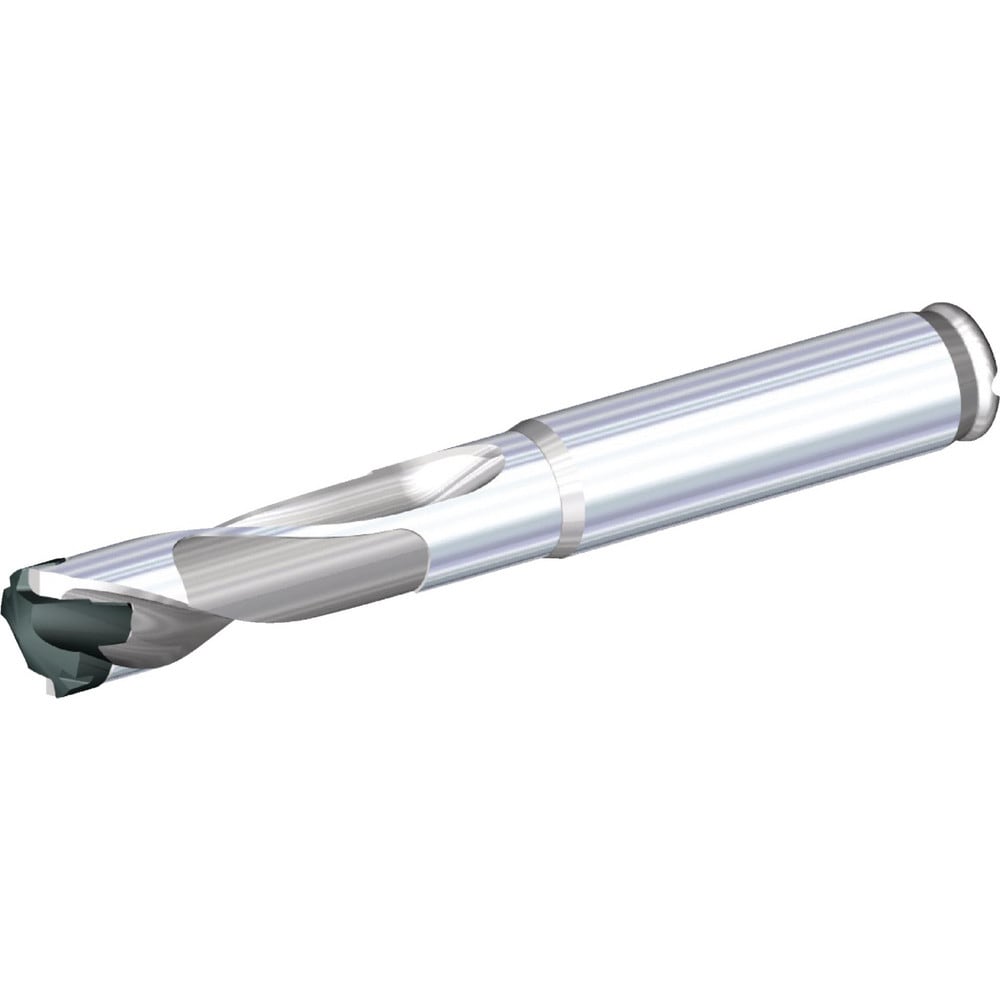

Brand: Widia / Part #: 3851559
Item #: 85112324
Brand: Widia
Model #: 3851559
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Diameter (Decimal Inch) | 0.5114 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.5400 |
| Shank Type | Cylindrical |
| Insert Style | TDM |
| Shank Diameter (Inch) | 9/16 |
| Shank Diameter (Decimal Inch) | 0.5625 |
| Insert Seat Size | W19 |
| Tool Material | Steel |
| Compatible Insert Style | TDM |
| Compatible Insert Size Code | W19 |
| Overall Length (Decimal Inch) | 4.1250 |
| Overall Length (Inch) | 4-1/8 |
| Series | TDM1 |
| Toolholder Style | TDM1 |
| Flute Length (Decimal Inch) | 2.2170 |
| Body Length (Decimal Inch) | 2.2170 |
| Shank Length (Decimal Inch) | 1.7900 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Tip Length (Decimal Inch) | 0.0953 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
