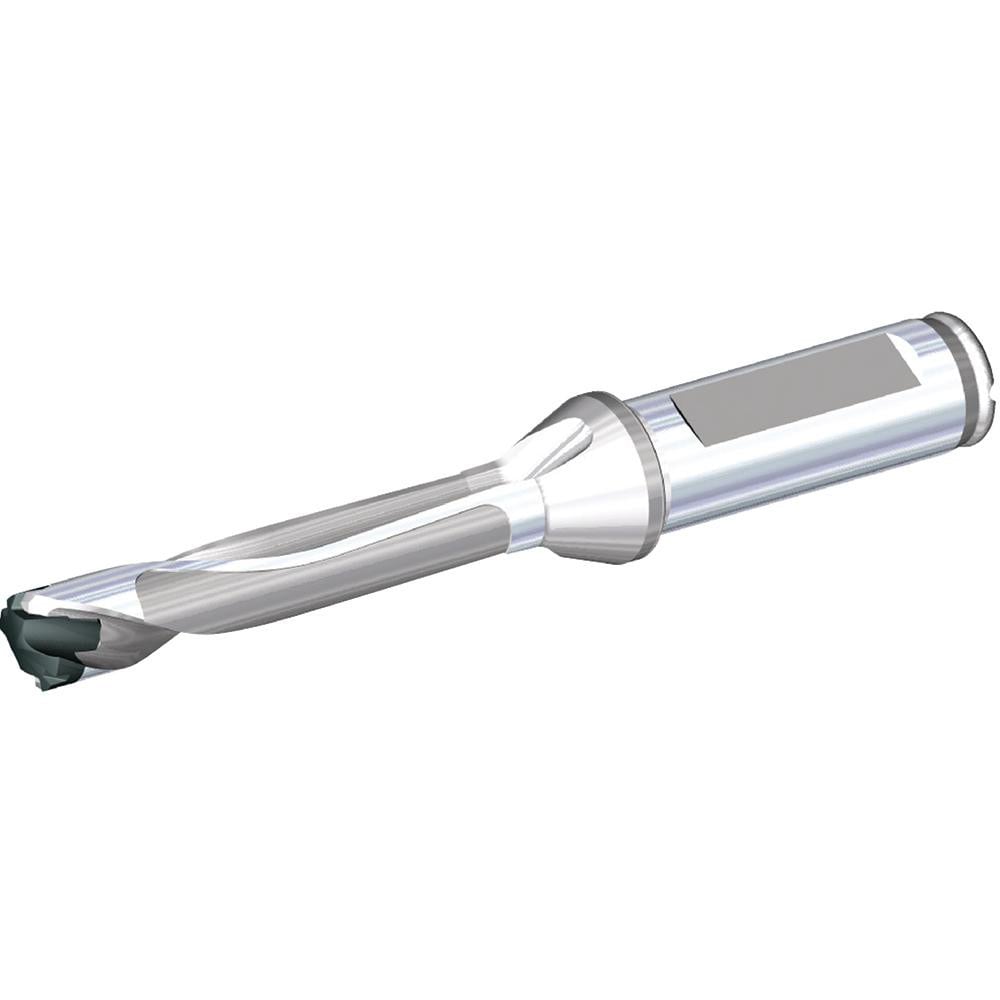

Brand: Widia / Part #: 4099039
Item #: 90435736
Brand: Widia
Model #: 4099039
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4528 |
| Maximum Drill Diameter (Decimal Inch) | 0.4723 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.3620 |
| Shank Type | Flatted |
| Insert Style | TDM |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Seat Size | W17 |
| Tool Material | Steel |
| Compatible Insert Style | TDM |
| Compatible Insert Size Code | W17 |
| Overall Length (Decimal Inch) | 5.1398 |
| Overall Length (Inch) | 5-9/64 |
| Series | TDM1 |
| Toolholder Style | TDM1 |
| Flute Length (Decimal Inch) | 3.0335 |
| Body Length (Decimal Inch) | 3.0157 |
| Shank Length (Decimal Inch) | 1.8898 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (Decimal Inch) | 0.0630 |
| Tip Length (Decimal Inch) | 0.0819 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
