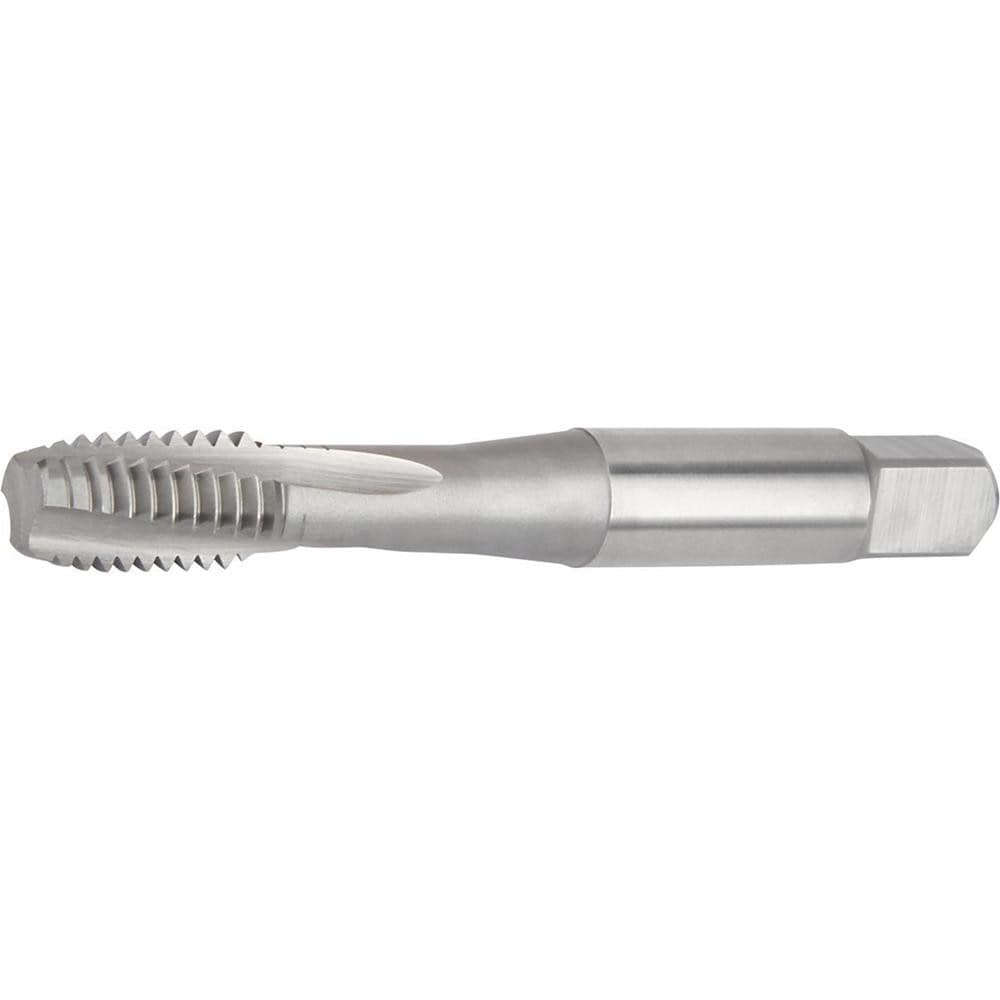

Brand: Widia / Part #: 5565216
Item #: 97457741
Brand: Widia
Model #: 5565216
Product Specifications
| Thread Size (Inch) | 3/4-16 |
| Chamfer | Modified Bottoming |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 4 |
| Material | Powdered Metal |
| Threads per Inch | 16 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | C; CrC; TiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 4.2500 |
| Thread Depth (Decimal Inch) | 2.0800 |
| Thread Pitch (Decimal Inch) | 0.0625 |
| Thread Standard | UNF |
| Material Grade | WS34MG |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Square Size (Decimal Inch) | 0.4390 |
| Material Application | High-Temperature Alloy |
| Series | GT-Ti |
