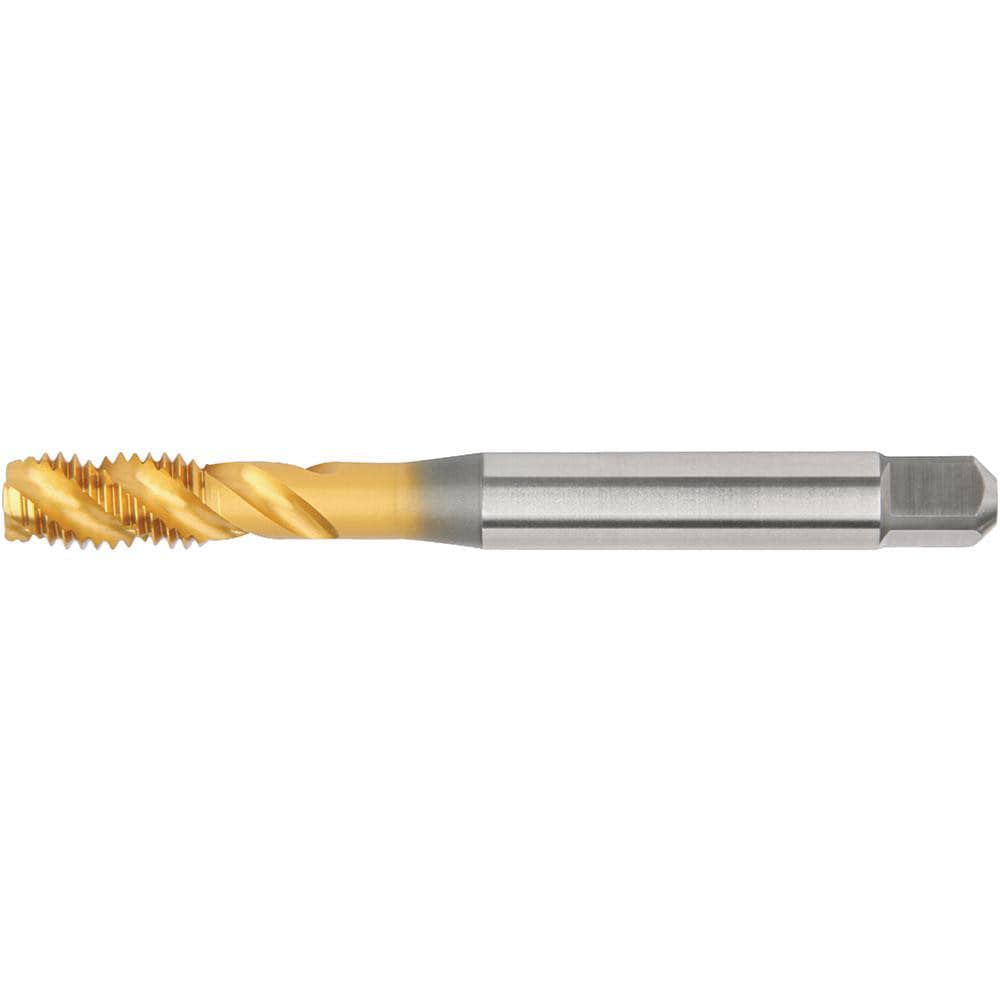

Brand: Widia / Part #: 5387474
Item #: 94006699
Brand: Widia
Model #: 5387474
Product Specifications
| Thread Size (mm) | M20x2.5 |
| Number Of Flutes | 4 |
| Chamfer | Bottoming |
| Thread Limit | 6H |
| Class Of Fit | 6H |
| Coating/Finish | Black Oxide |
| Threads per Inch | 10 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 64.00 |
| Thread Pitch (mm) | 2.50 |
| Thread Standard | Metric |
| Material Grade | WP49EG |
| Thread Length (mm) | 30.00 |
| Overall Length (mm) | 140.0000 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VT-SFT |
