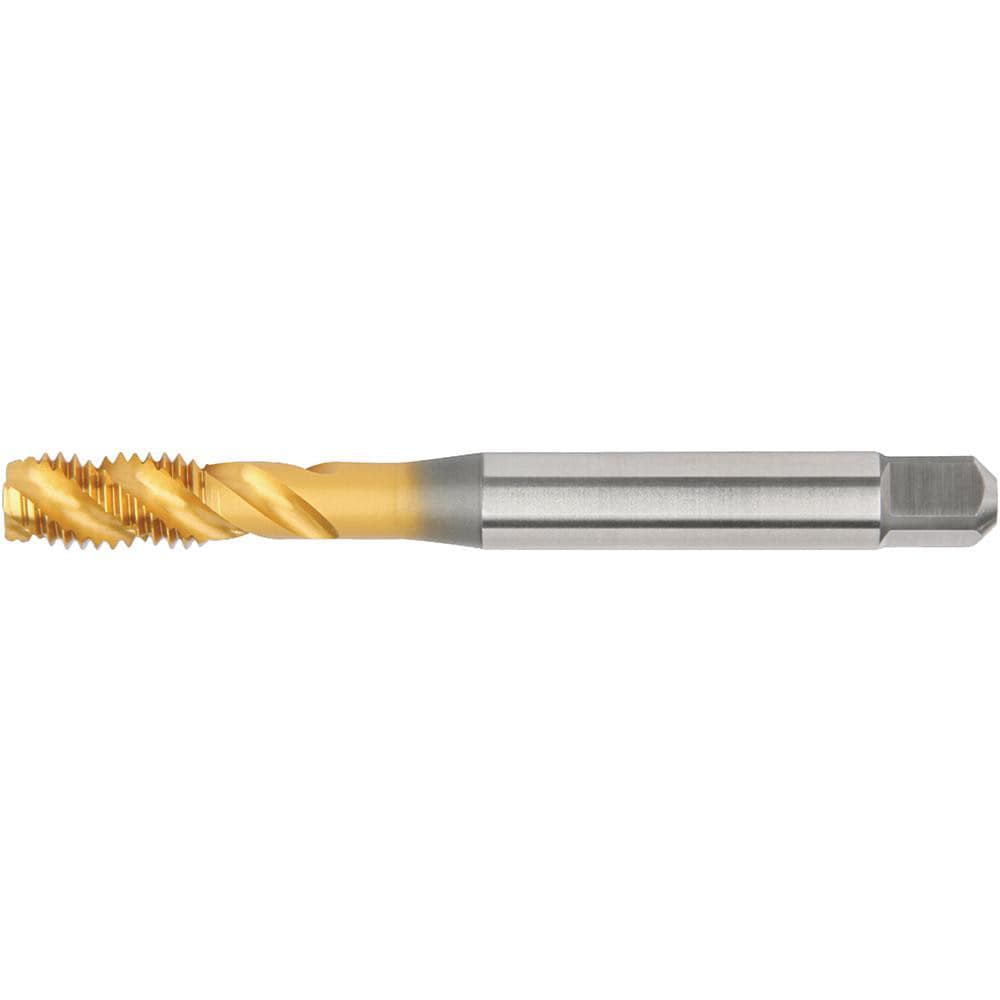

Brand: Widia / Part #: 6172919
Item #: 97473417
Brand: Widia
Model #: 6172919
Product Specifications
| Thread Size (Inch) | 7/8-9 |
| Chamfer | Modified Bottoming |
| Thread Limit | H6 |
| Class Of Fit | 2B |
| Number Of Flutes | 4 |
| Material | High Speed Steel |
| Threads per Inch | 9 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.9800 |
| Overall Length (Decimal Inch) | 5.5100 |
| Thread Depth (Decimal Inch) | 2.6800 |
| Thread Pitch (Decimal Inch) | 0.1111 |
| Thread Standard | UNC |
| Material Grade | WU41EG |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Square Size (Decimal Inch) | 0.5710 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
