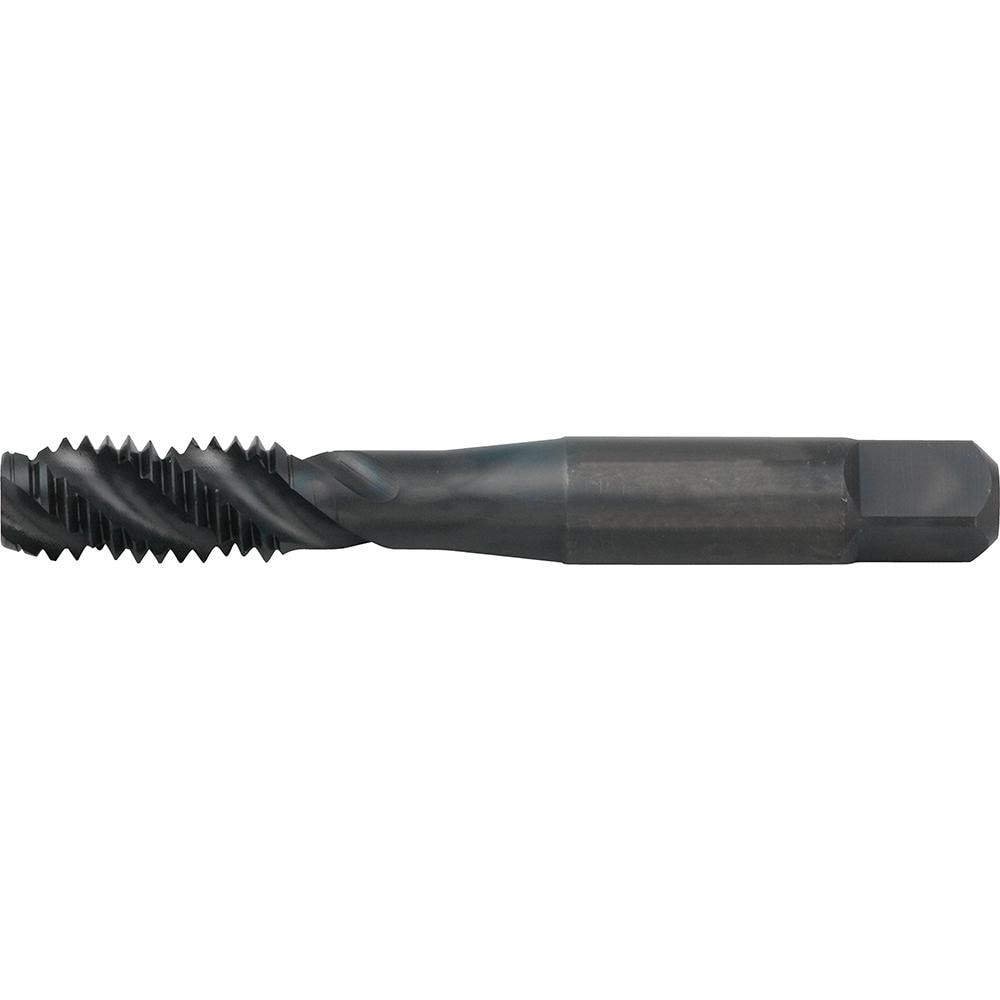

Brand: Widia / Part #: 5364721
Item #: 97451660
Brand: Widia
Model #: 5364721
Product Specifications
| Thread Size (Inch) | 7/8-14 |
| Chamfer | Modified Bottoming |
| Thread Limit | H4 |
| Class Of Fit | 3B |
| Number Of Flutes | 4 |
| Material | High Speed Steel |
| Threads per Inch | 14 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 1.3400 |
| Overall Length (Decimal Inch) | 4.6900 |
| Thread Depth (Decimal Inch) | 2.3000 |
| Thread Pitch (Decimal Inch) | 0.0714 |
| Thread Standard | UNF |
| Material Grade | WP49EG |
| Shank Diameter (Decimal Inch) | 0.6970 |
| Square Size (Decimal Inch) | 0.5200 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
