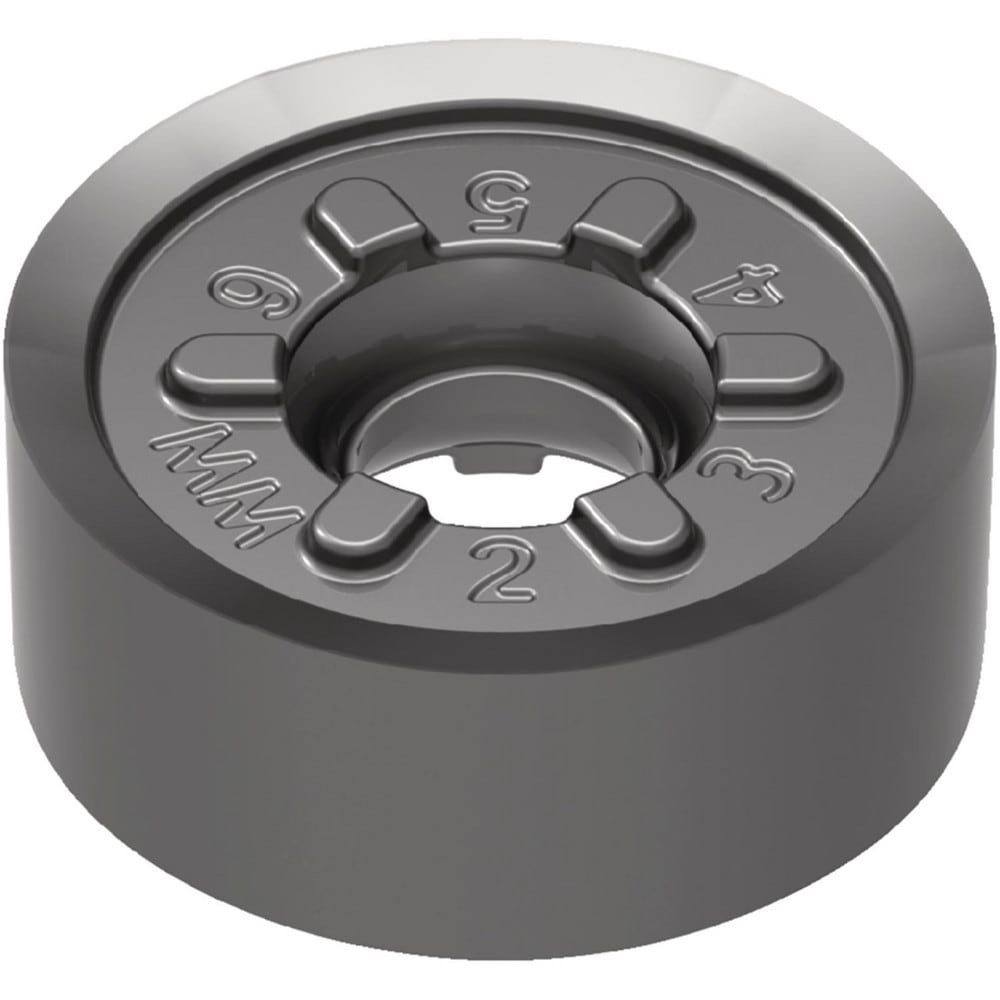

Brand: Widia / Part #: 6010882
Item #: 94121423
Brand: Widia
Model #: 6010882
Product Specifications
| Insert Style | RNGJ |
| Insert Size Code | 1906 |
| Insert Size | 64 |
| Insert Material | Carbide |
| Width (Inch) | 3/4 |
| Manufacturer Grade | WP25PM |
| Length (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Corner Radius (Decimal Inch) | 0.3750 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | M200 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2237 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Round |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Secondary Workpiece Material | Hard Material; Cast Iron |
| Secondary Workpiece Material Code | H; K |
| Ansi Code | RNGJ64SMM |
| Iso Code | RNGJ190600SMM |
| Manufacturers Catalog Number | RNGJ64SMM |
| Cutter Series Compatibility | M200 RN64 CT |
| Chip Breaker | MM |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Round |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | AlTiN |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7500 |
