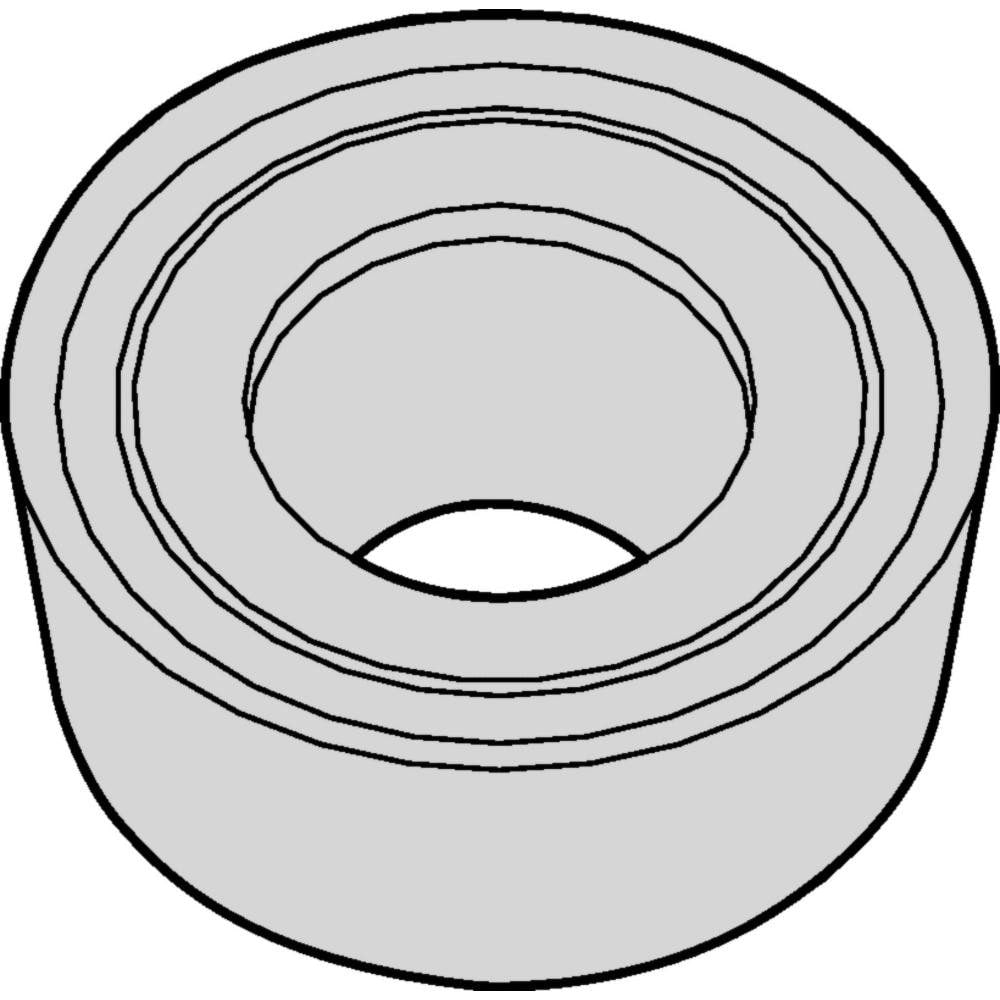

Brand: Widia / Part #: 2002474
Item #: 94015419
Brand: Widia
Model #: 2002474
Product Specifications
| Insert Style | RCGT |
| Insert Shape Code | R |
| Insert Size Code | 803 |
| Insert Shape | Round |
| Coating/Finish | Uncoated |
| Manufacturer Grade | HWK10 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Clearance Code | C |
| Tolerance Code | G |
| Relief Angle | 7.000 |
| Series | RCGT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3150 |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | RCGT0803M0AL1 |
| Iso Code | RCGT0803M0AL1 |
| Manufacturers Catalog Number | RCGT0803M0AL1 |
| Cutting Direction | Neutral |
| Coating Classification | Uncoated |
| Chip Breaker | AL1 |
| Style | RCGT |
| Width (Decimal Inch - 4 Decimals) | 0.3150 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | External Turning; Internal Turning |
