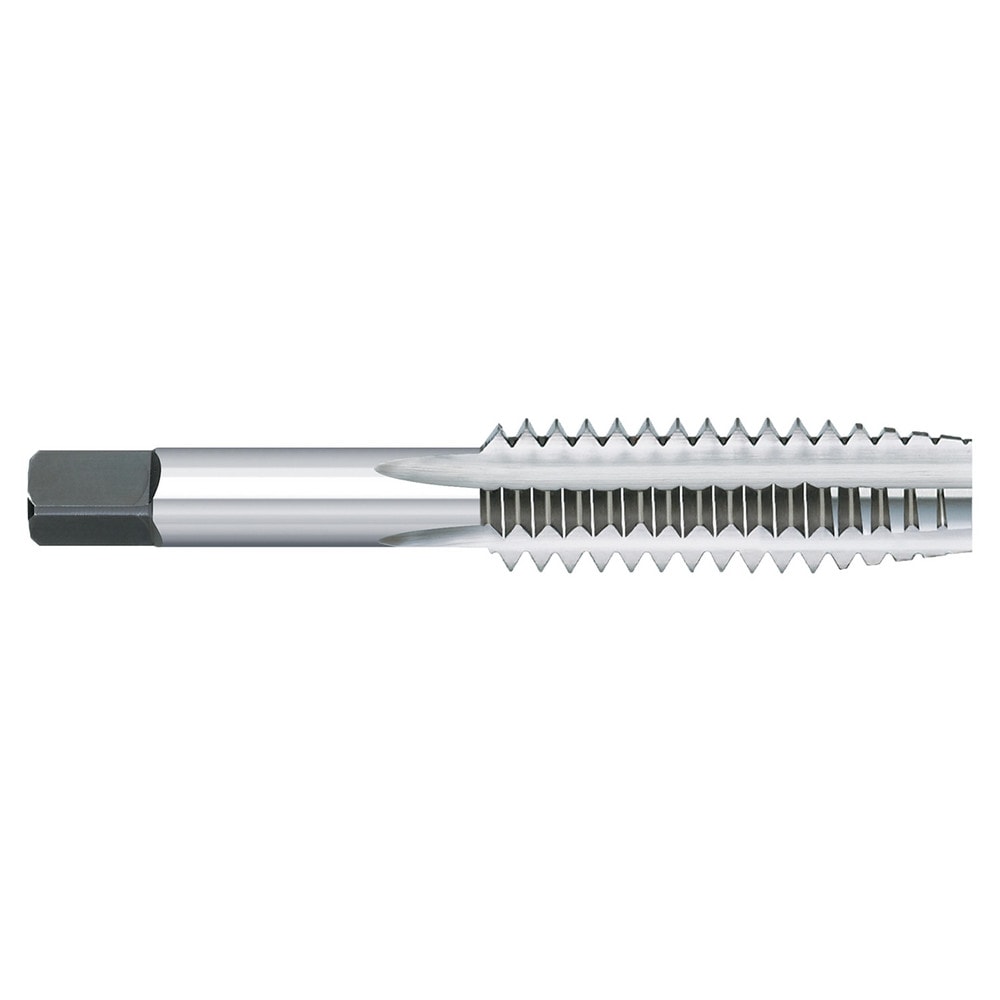

Brand: Titan USA / Part #: TT90720
Item #: 87438685
Brand: Titan USA
Model #: TT90720
Product Specifications
| Thread Size (Inch) | 1-3/4-8 |
| Thread Limit | H6 |
| Class Of Fit | 2B/3B |
| Number Of Flutes | 6 |
| Chamfer | Taper |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 8 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UN |
| Overall Length (Inch) | 7 |
| Thread Pitch (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 7.0000 |
| Thread Length (Decimal Inch) | 3.1875 |
| Thread Length (Inch) | 3-3/16 |
| Shank Diameter (Decimal Inch) | 1.4300 |
| Square Length (Inch) | 1-1/4 |
| Square Size (Decimal Inch) | 1.0720 |
| Series | General Purpose Taps - High Speed Steel - Hand Taps - 8 Pitch |
