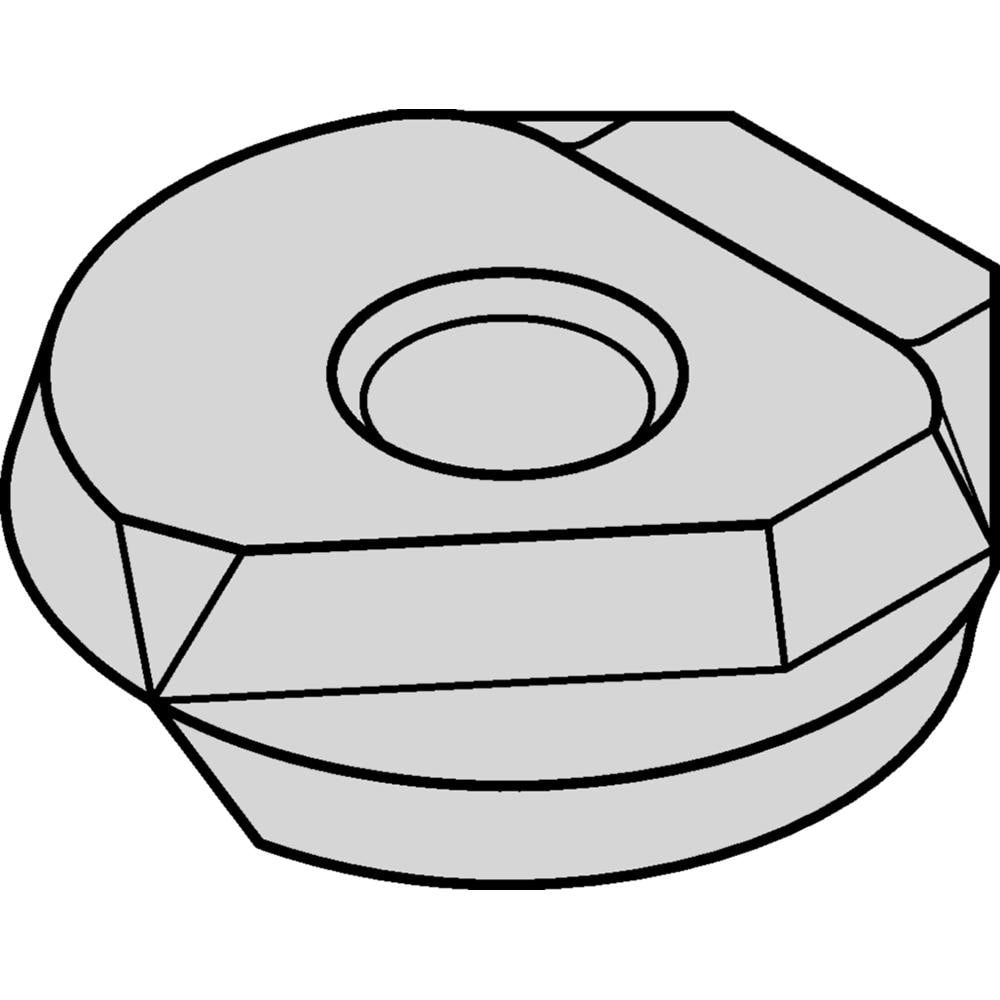

Brand: Widia / Part #: 2113573
Item #: 94182110
Brand: Widia
Model #: 2113573
Product Specifications
| Insert Style | M270 |
| Insert Size Code | BF03 |
| Insert Size | 03 |
| Insert Material | Carbide |
| Width (Inch) | 3/8 |
| Manufacturer Grade | TN2505 |
| Thickness (Inch) | 3/32 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Insert Hand | Right Hand |
| Series | M270 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4016 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Ball Nose |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K |
| Ansi Code | M270BF0375 |
| Iso Code | M270BF0375 |
| Manufacturers Catalog Number | M270BF0375 |
| Cutter Series Compatibility | M270 BALL IN |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Ball Nose |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Thickness (Decimal Inch - 4 Decimals) | 0.0937 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4016 |
