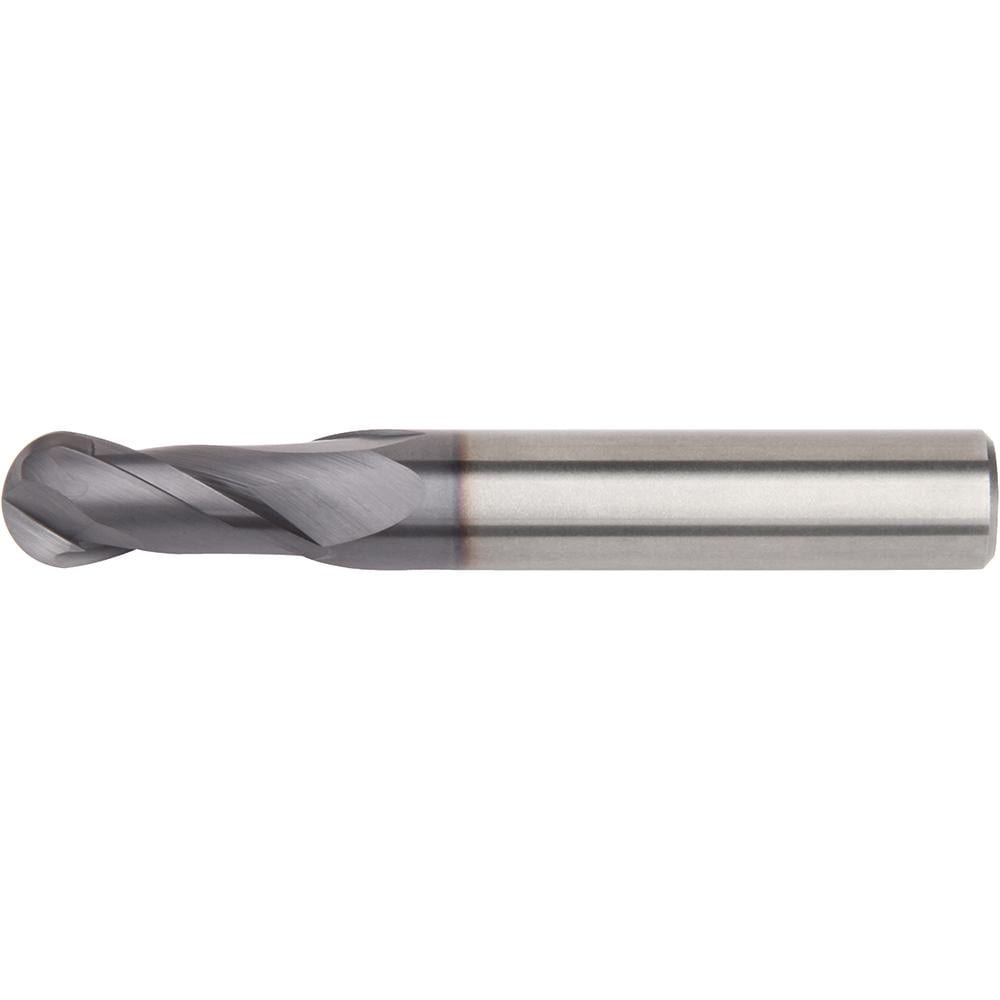

Brand: Widia / Part #: 5878186
Item #: 33978065
Brand: Widia
Model #: 5878186
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Length of Cut (Inch) | 5/8 |
| End Mill Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Chipbreaker | No |
| Number Of Flutes | 2 |
| End Type | Single |
| Extended Reach | No |
| Undercutting | No |
| Helix Style | Medium |
| Material Removal Type | Finishing |
| Shank Diameter (Inch) | 3/16 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Nose Radius (Decimal Inch) | 0.0940 |
| Reach Length (Inch) | 5/8 |
| Reach Length (Decimal Inch) | 0.6250 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Maximum Helix Angle | 30.00 |
| Minimum Helix Angle | 30.00 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Material Grade | TiAlN |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | I2B |
| Flute Type | Medium |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
