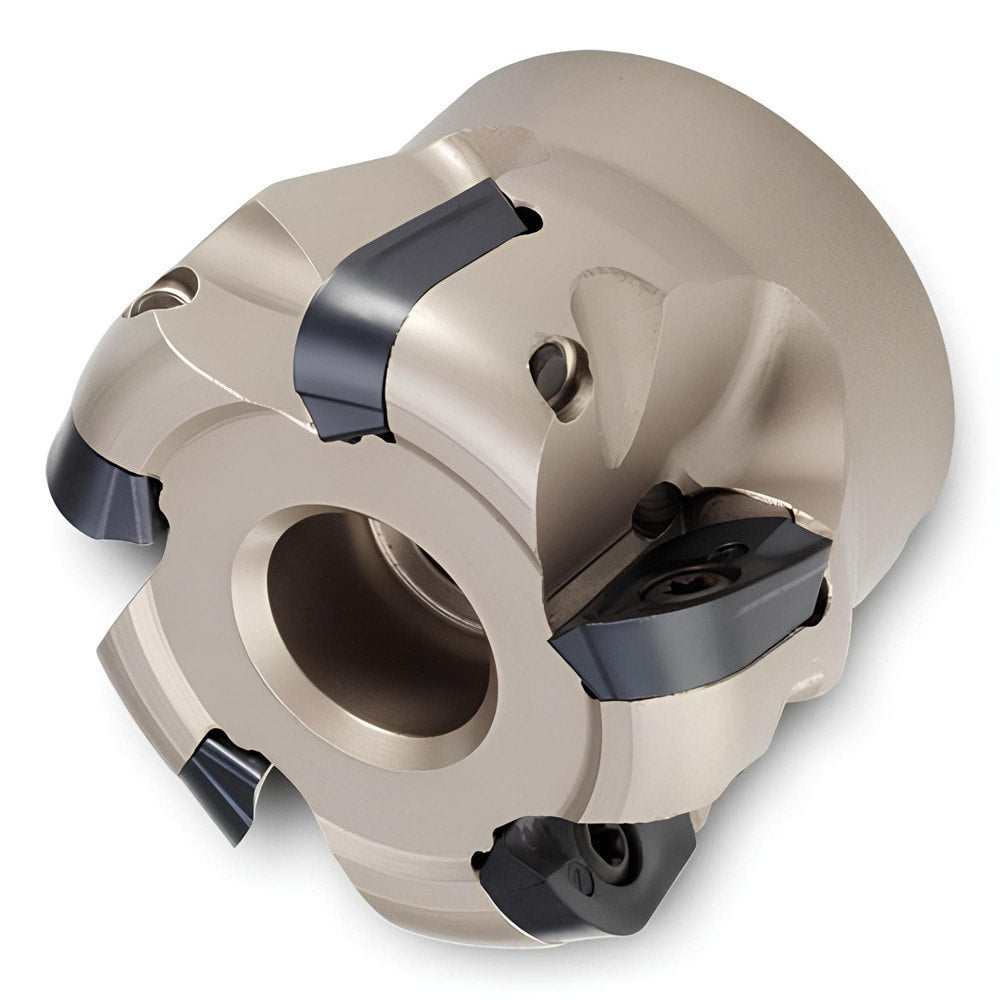

Brand: Ingersoll Cutting Tools / Part #: 3018981
Item #: 99515637
Brand: Ingersoll Cutting Tools
Model #: 3018981
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 4.0000 |
| Minimum Cutting Diameter (Inch) | 4 |
| Minimum Cutting Diameter (mm) | 101.60 |
| Maximum Cutting Diameter (Inch) | 4 |
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (mm) | 16.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | 1805 |
| Maximum Ramping Angle | 1.2 |
| Cutter Style | 2J4E |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 deg |
| Rake | Positive |
| Series | 2J4E |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Keyway Width (Inch) | 5/8 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Pitch Type | Normal |
| Tool Application | Facing; Ramping; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Decimal Inch) | 0.6300 |
| Complete Insert Compatibility | AOMT1805? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 2J4E-40R02 |
| Coolant Through | No |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 5 |
