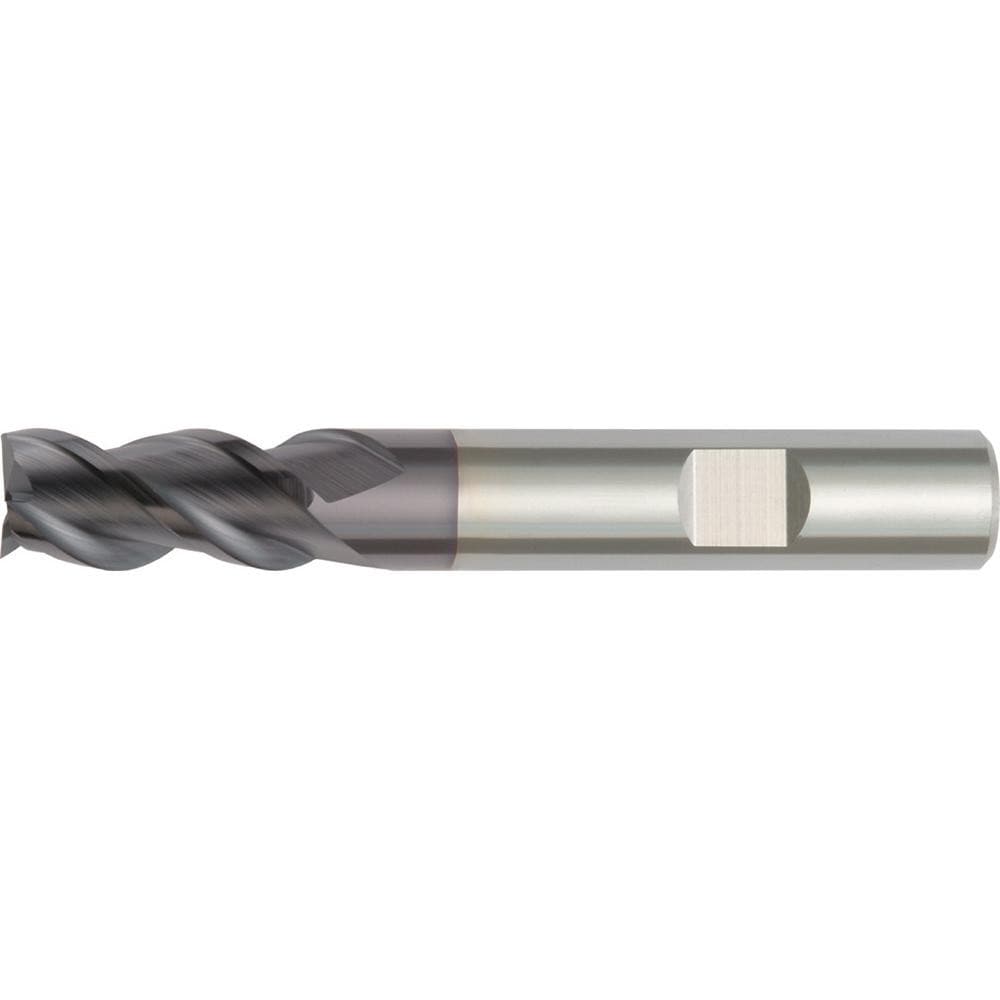

Brand: Widia / Part #: 6613012
Item #: 97934921
Brand: Widia
Model #: 6613012
Product Specifications
| Mill Diameter (mm) | 2.50 |
| Chamfer Width (mm) | 0.100 |
| Coating/Finish | TiAlN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Single Or Double End | Single |
| Overall Length (mm) | 50.0000 |
| Length of Cut (mm) | 3.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Material Removal Type | Finishing |
| Shank Diameter (mm) | 6.0000 |
| Neck Diameter (mm) | 0.000 |
| Reach Length (mm) | 3.00 |
| Minimum Helix Angle | 45 |
| Secondary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| Secondary Workpiece Material Code | P; S; H; K; M |
| Series | D503 |
| Coating Classification | PVD |
| Chamfer Length (mm) | 0.10 |
| Helix Style | High |
