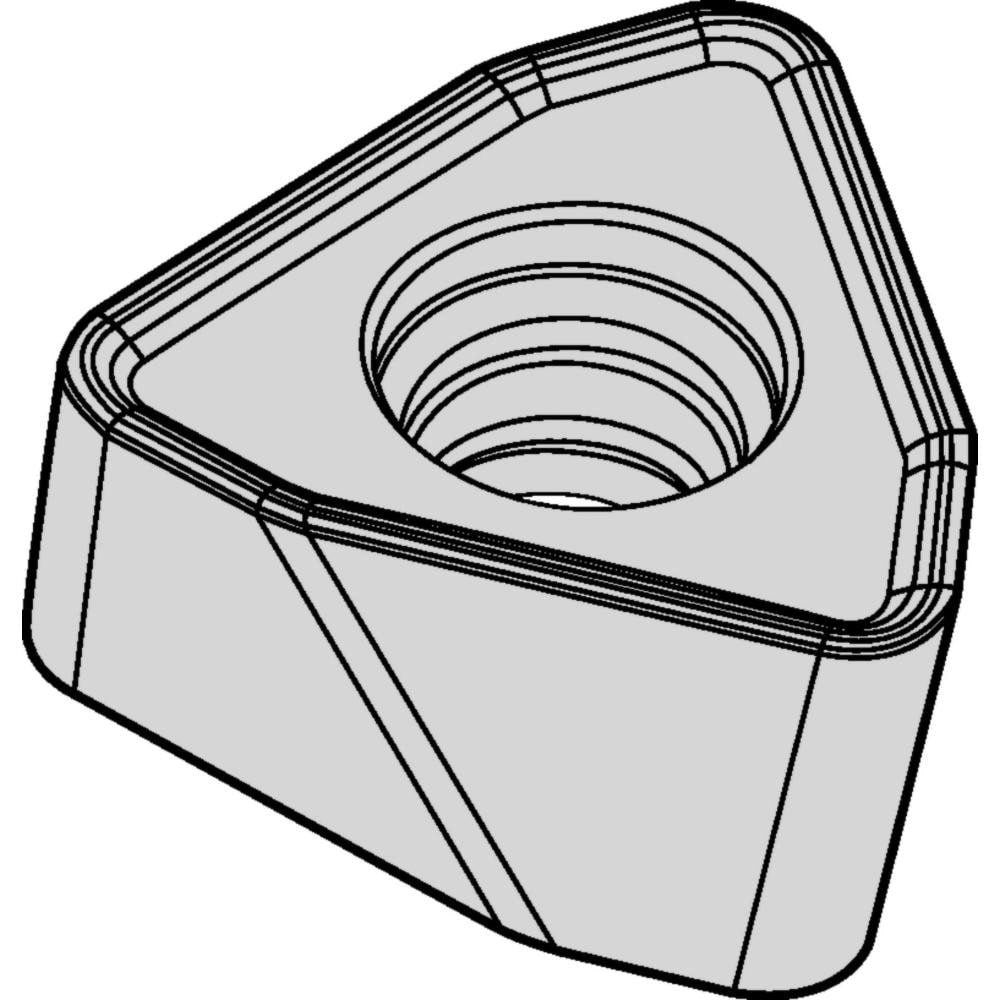

Brand: Widia / Part #: 4052410
Item #: 94484714
Brand: Widia
Model #: 4052410
Product Specifications
| Insert Style | WOEJ |
| Insert Size Code | 0804 |
| Insert Size | 08 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6540 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.3069 |
| Corner Radius (Decimal Inch) | 0.0482 |
| Insert Hand | Right Hand |
| Relief Angle | 0.000 |
| Series | M370 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1402 |
| Maximum Depth of Cut (Decimal Inch) | 0.2460 |
| Number Of Cutting Edges | 6 |
| Insert Shape | Trigon |
| Rake | Negative |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Secondary Workpiece Material Code | P; K; M |
| Ansi Code | WOEJ080412SRMH |
| Iso Code | WOEJ080412SRMH |
| Manufacturers Catalog Number | WOEJ080412SRMH |
| Cutter Series Compatibility | M370 WO0804 IN |
| Chip Breaker | MH |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Trigon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiAlN |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.4130 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4130 |
