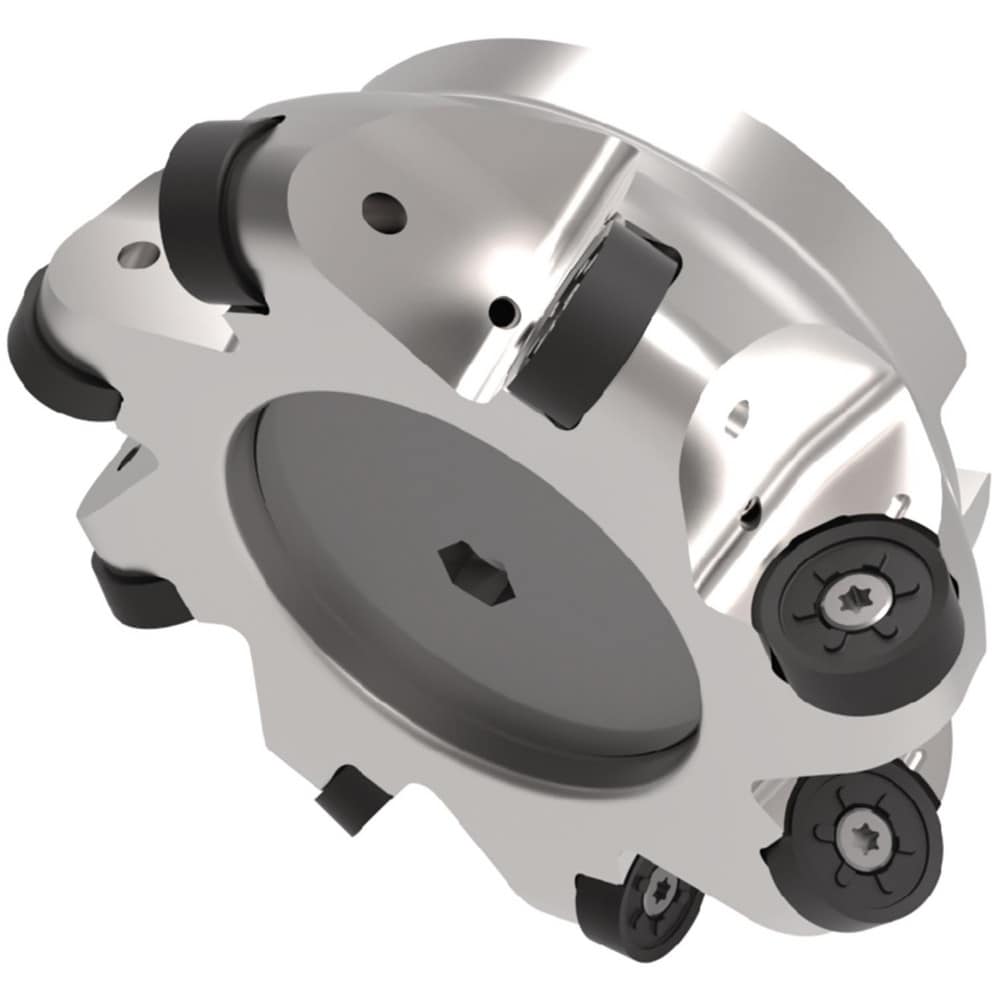

Brand: Widia / Part #: 6009965
Item #: 97193569
Brand: Widia
Model #: 6009965
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 4.2480 |
| Maximum Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3740 |
| Arbor Hole Diameter (mm) | 1.50 |
| Compatible Insert Size Code | RN_J64__ |
| Maximum Ramping Angle | 0.60 degree |
| Cutter Style | M200 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M200 |
| Hub Diameter (Decimal Inch) | 3.8126 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Maximum RPM | 10000 |
| Tool Application | Profiling; Pocketing; Milling; Slotting; Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Super-Alloys & Titanium; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Number Of Cutter Inserts | 6 |
| Coolant Through | Yes |
