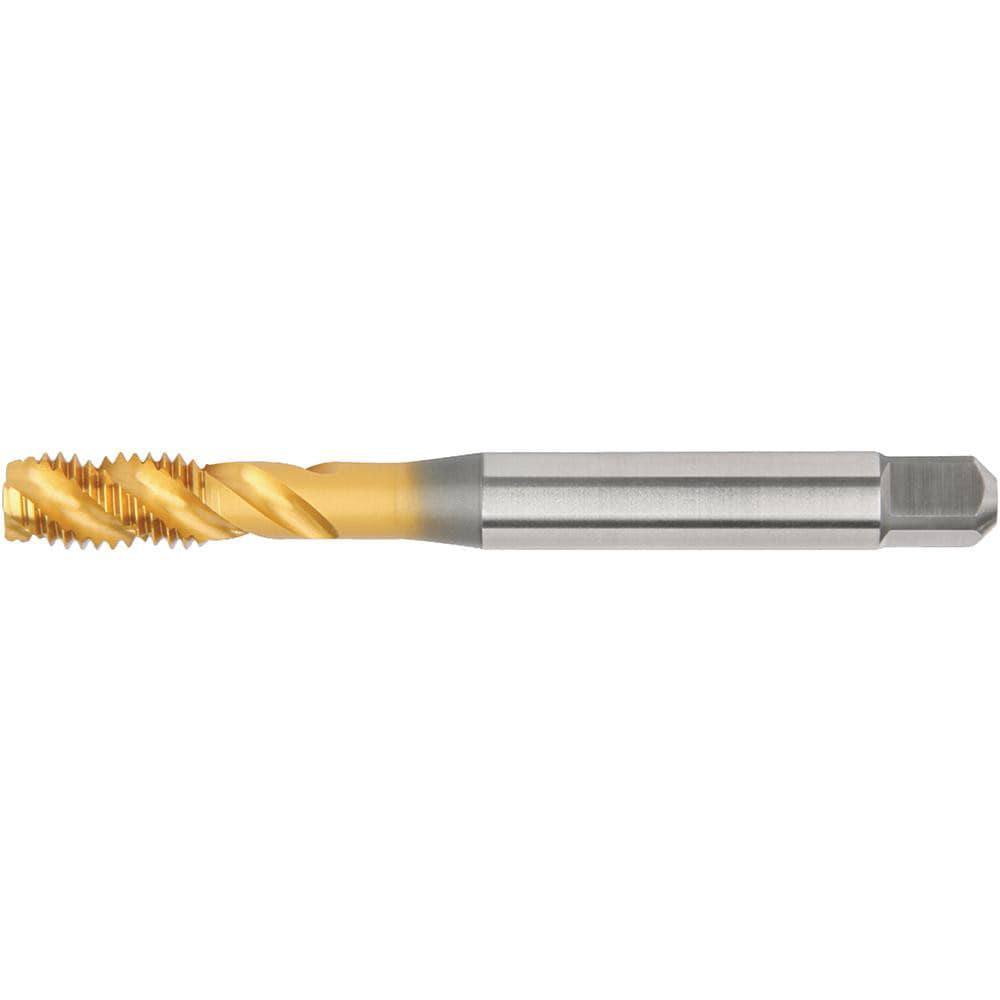

Brand: Widia / Part #: 5402186
Item #: 97184667
Brand: Widia
Model #: 5402186
Product Specifications
| Thread Size (mm) | M8x0.75 |
| Chamfer | Modified Bottoming |
| Thread Limit | D4 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 34 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Thread Depth (mm) | 30.00 |
| Coolant Through | No |
| Thread Length (mm) | 12.00 |
| Overall Length (mm) | 80.0000 |
| Thread Pitch (mm) | 0.75 |
| Thread Standard | Metric |
| Material Grade | WP49EG |
| Shank Diameter (mm) | 6.0000 |
| Square Length (mm) | 8.00 |
| Square Size (mm) | 4.90 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
