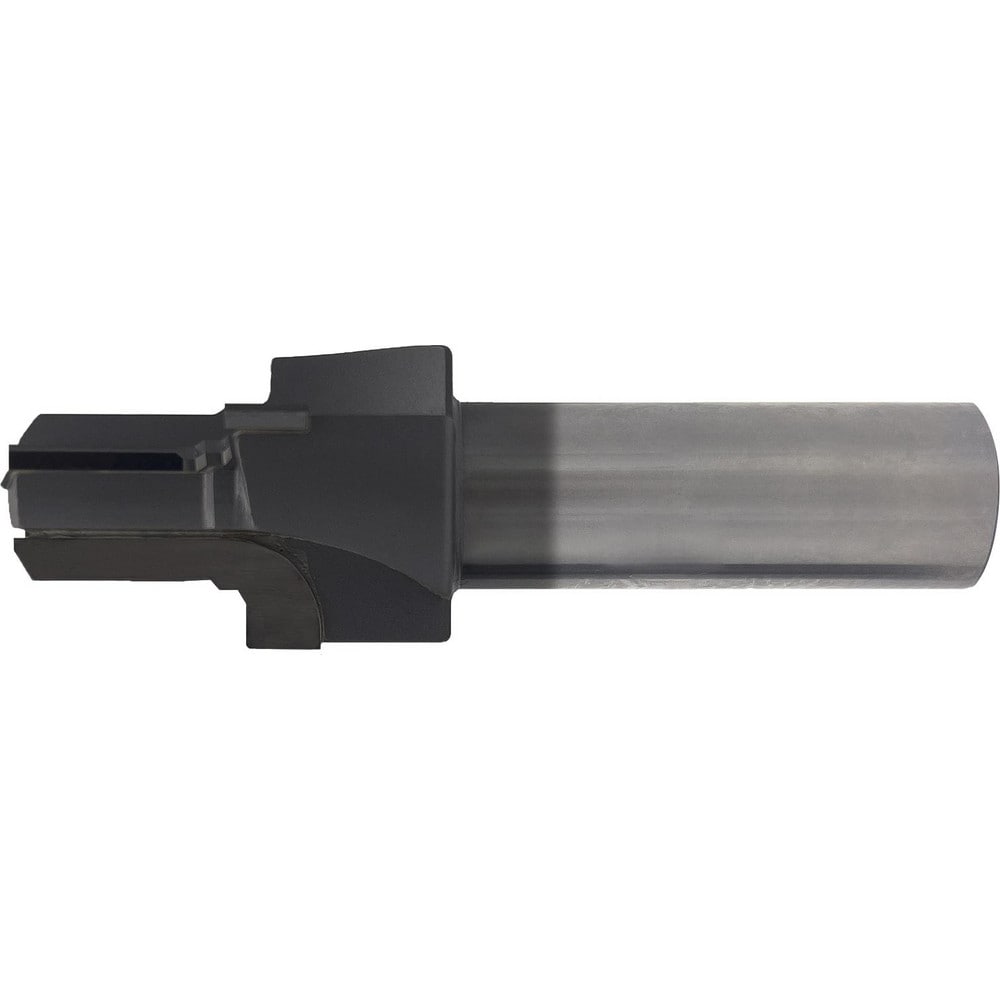

Brand: Scientific Cutting Tools / Part #: AS5202-28RA
Item #: 90955097
Brand: Scientific Cutting Tools
Model #: AS5202-28RA
Product Specifications
| Spotface Diameter (Decimal Inch) | 3.0500 |
| Tube Outside Diameter Compatibility (Inch) | 1-3/4 |
| Pilot Type | Reamer |
| Port Thread Size (Decimal Inch) | 2-1/4 - 12 |
| Tool Material | Carbide-Tipped |
| Tube Dash Number | 28.000 |
| Minimum Pilot Diameter (Decimal Inch) | 2.1740 |
| Pilot Length | 1.1300 |
| Overall Length (Decimal Inch) | 4.9200 |
| Number Of Flutes | 3 |
| Standards | AS5202; MS33649 |
| Shank Type | Straight |
| Identification Groove | No |
| Series | Standard |
| Seal Angle | 30 |
| Thread Type | UNJ |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1-1/4 |
| Shank Length (Decimal Inch) | 2.5000 |
| Maximum Pilot Diameter (Decimal Inch) | 2.2755 |
| Head Length (Decimal Inch) | 2.4200 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | AlTiN |
