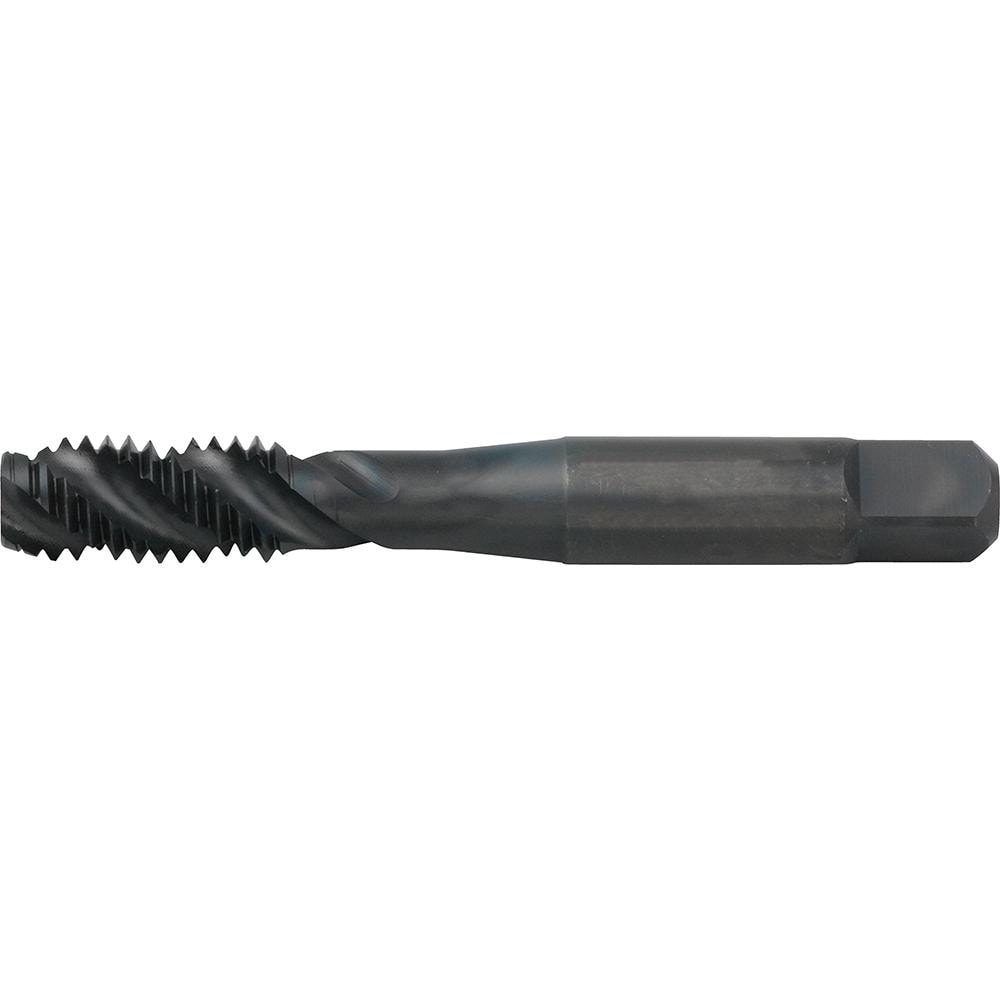

Brand: Widia / Part #: 5356731
Item #: 97541908
Brand: Widia
Model #: 5356731
Product Specifications
| Thread Size (Inch) | #3-48 |
| Chamfer | Modified Bottoming |
| Thread Limit | H2 |
| Class Of Fit | 3B |
| Number Of Flutes | 2 |
| Material | High Speed Steel |
| Threads per Inch | 48 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.4600 |
| Overall Length (Decimal Inch) | 1.8200 |
| Thread Depth (Decimal Inch) | 0.5700 |
| Thread Pitch (Decimal Inch) | 0.0208 |
| Thread Standard | UNC |
| Material Grade | WP49EG |
| Shank Diameter (Decimal Inch) | 0.1410 |
| Square Size (Decimal Inch) | 0.1080 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
