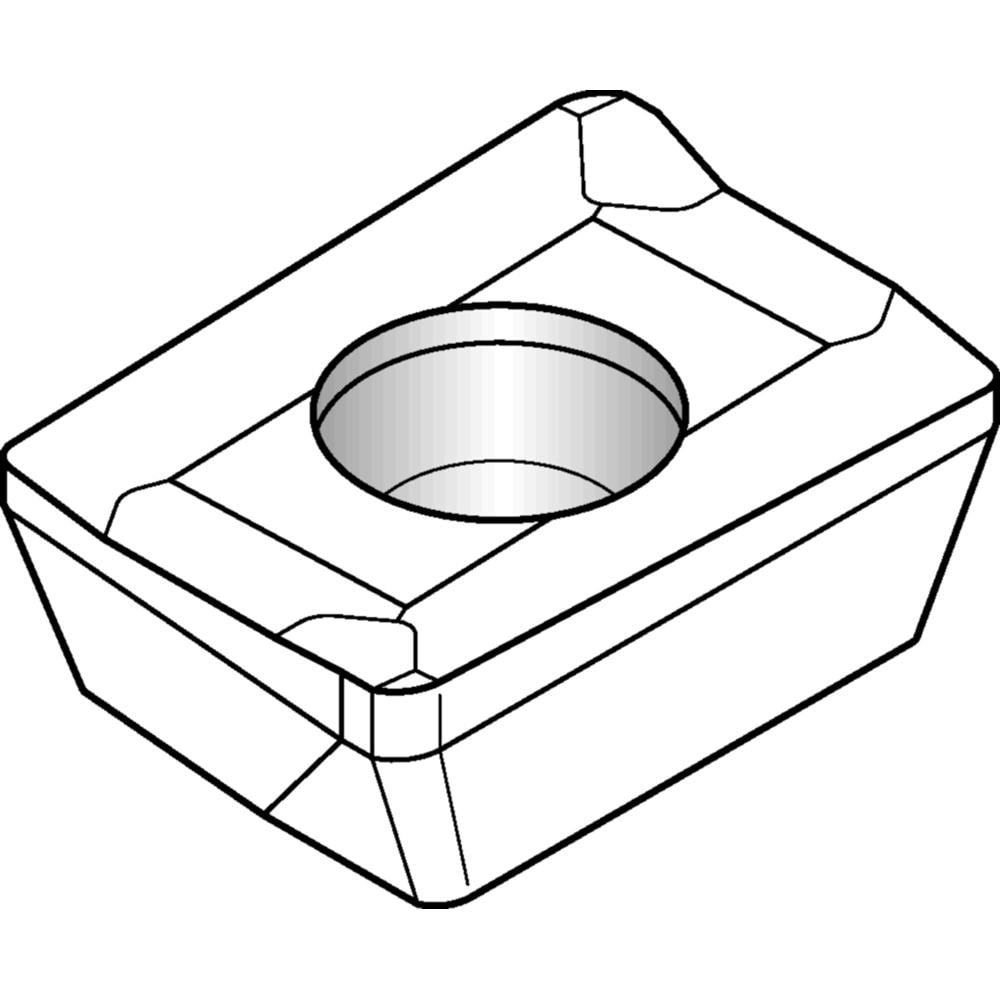

Brand: Widia / Part #: 2957823
Item #: 94107034
Brand: Widia
Model #: 2957823
Product Specifications
| Insert Style | AONT |
| Insert Size Code | 10T3 |
| Insert Size | 10 |
| Insert Material | Carbide |
| Manufacturer Grade | TN6510 |
| Inscribed Circle (Decimal Inch) | 0.2952 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Relief Angle | 10.000 |
| Series | M680 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1356 |
| Maximum Depth of Cut (Decimal Inch) | 0.4083 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | AONT10T308ML |
| Iso Code | AONT10T308ML |
| Manufacturers Catalog Number | AONT10T308ML |
| Cutter Series Compatibility | M680 AO10T3 IN |
| Chip Breaker | ML |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.2952 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1543 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4083 |
