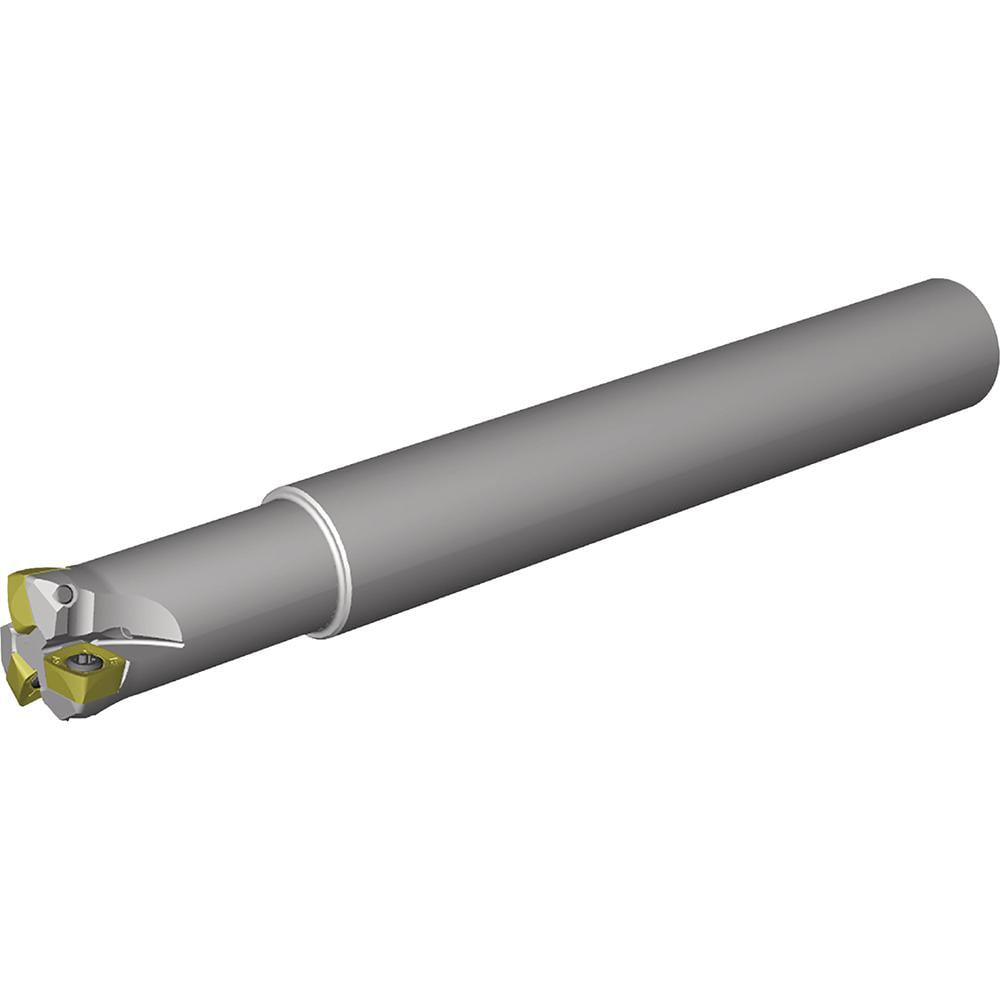

Brand: Widia / Part #: 6597771
Item #: 99576647
Brand: Widia
Model #: 6597771
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.7106 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Toolholder Style | VXF |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Maximum Ramping Angle | 1.5 |
| Compatible Insert Style | XDPT |
| Compatible Insert Size Code | XD..090412 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 9.8425 |
| Series | VXF-09 |
| Flute Type | Straight |
| Maximum RPM | 40500.000 |
| Modular Connection Size | None |
| Head Length (Decimal Inch) | 2.7559 |
| Projection (Decimal Inch) | 2.7559 |
| Tool Application | Facing; Plunging; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Complete Insert Compatibility | XDPT090412ERMM |
| Lead Angle | 14 |
| Number Of Flutes | 3 |
| End Mill Material | Steel |
| Coolant Through | Yes |
