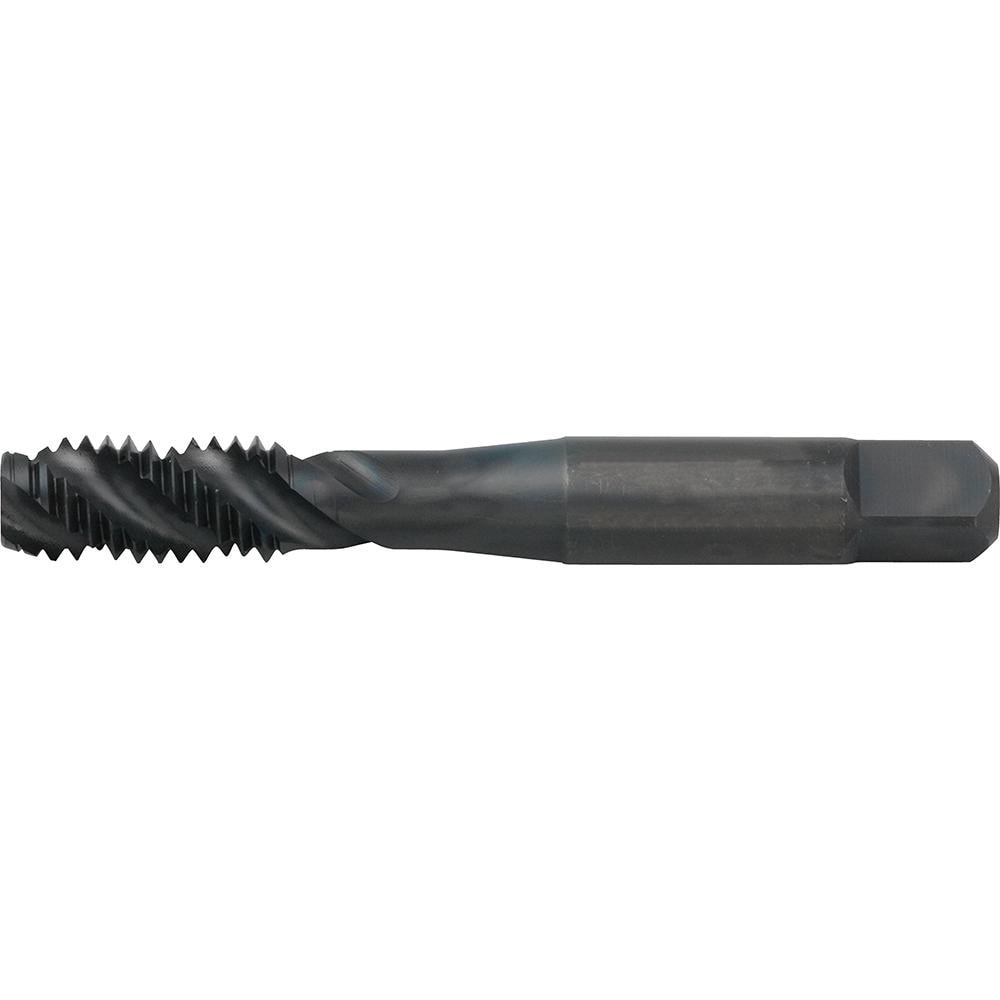

Brand: Widia / Part #: 6140350
Item #: 97557342
Brand: Widia
Model #: 6140350
Product Specifications
| Thread Size (mm) | M8x1 |
| Chamfer | Bottoming |
| Thread Limit | D5 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 25 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Black Oxide |
| Thread Depth (mm) | 28.50 |
| Coolant Through | No |
| Thread Length (mm) | 17.50 |
| Overall Length (mm) | 69.1000 |
| Thread Pitch (mm) | 1.00 |
| Thread Standard | Metric |
| Material Grade | WP49EG |
| Shank Diameter (mm) | 8.0800 |
| Square Length (mm) | 9.50 |
| Square Size (mm) | 5.99 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
