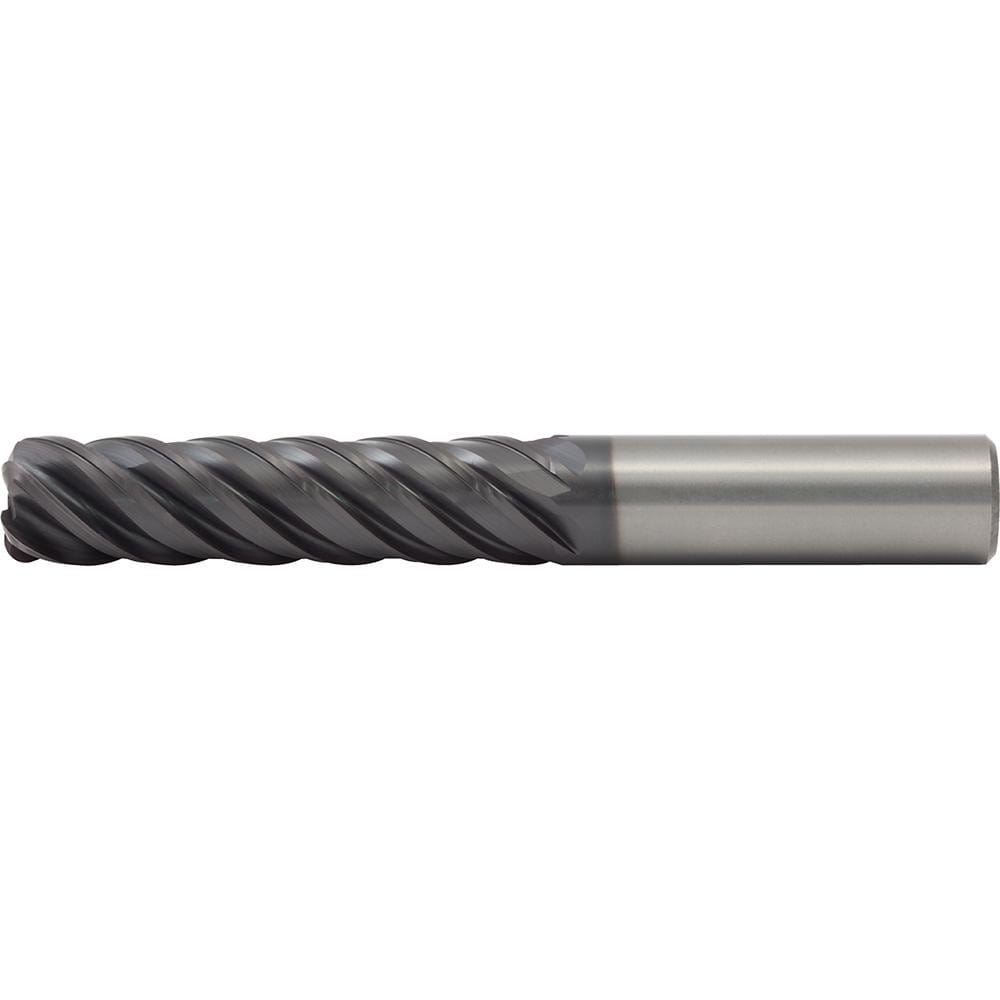

Brand: Widia / Part #: 5095531
Item #: 95435152
Brand: Widia
Model #: 5095531
Product Specifications
| Mill Diameter (Inch) | 1 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Overall Length (Inch) | 7 |
| Length of Cut (Inch) | 4 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 7.0000 |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 4.0000 |
| Length Type | Extra Long |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Material Removal Type | Finishing |
| Minimum Helix Angle | 43.00 |
| Maximum Helix Angle | 43.00 |
| Primary Workpiece Material | Hard Material; Stainless Steel; High Temperature Alloy; Steel |
| Primary Workpiece Material Code | P; S; H; M |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Material Grade | AlTiN-MT |
| Series | 5W1S |
