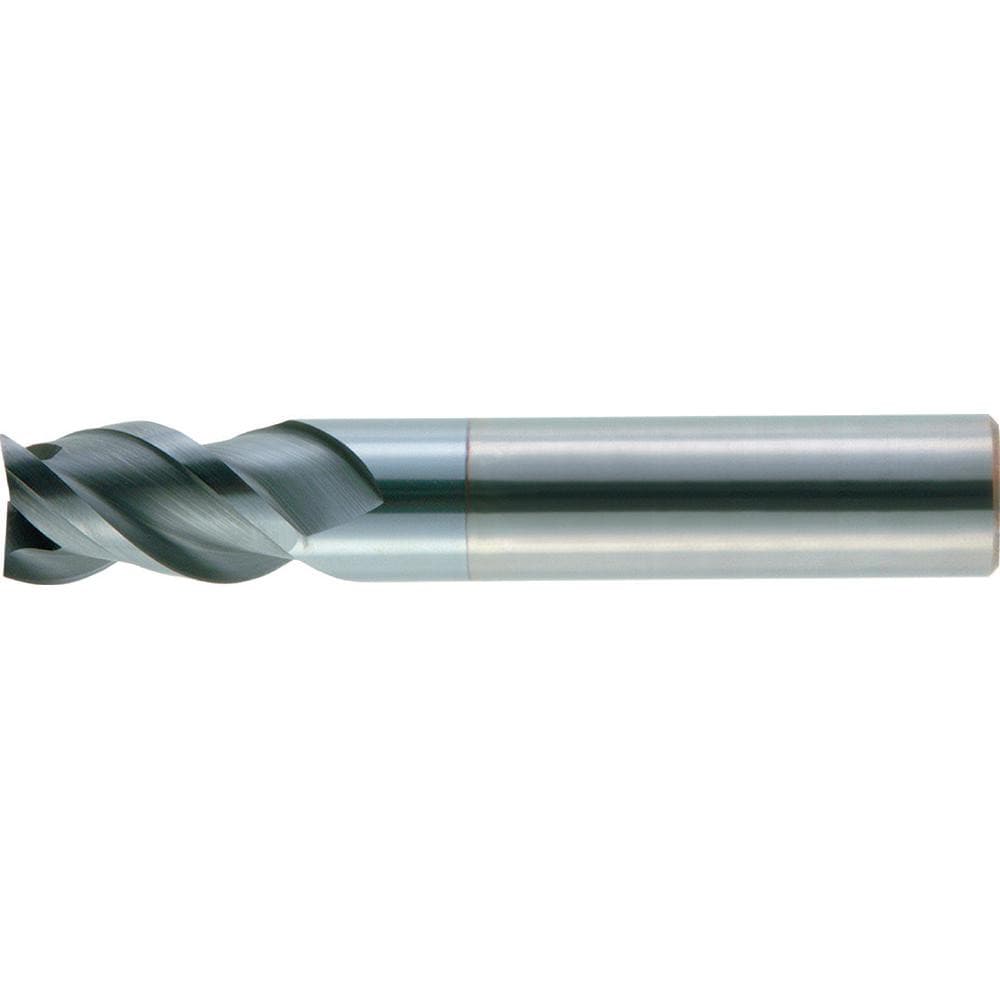

Brand: Widia / Part #: 2842502
Item #: 33972951
Brand: Widia
Model #: 2842502
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Coating/Finish | AlTiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 3 |
| Overall Length (Inch) | 2 |
| Length of Cut (Inch) | 5/8 |
| Cutting Direction | Right Hand |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.0000 |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| Length Type | Regular |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Material Removal Type | Finishing |
| Minimum Helix Angle | 35.00 |
| Maximum Helix Angle | 35.00 |
| Secondary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| Secondary Workpiece Material Code | P; S; H; K; M |
| Series | 4C03 |
