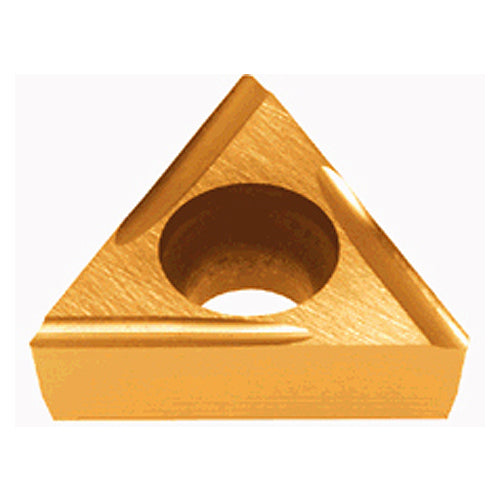

TCGT 630.5 FL-J08 TH10
Item #: TG556807630
Brand: Tungaloy
Model #: 6807630
| Product Specifications | |
|---|---|
| Applicable Material | | Cast Iron | Hard Materials | Non Ferrous Metals | Hi Temp Alloys | |
| Fixing Hole Diameter (D1) | 0.091″ |
| Application | | Inserts | |
| Min D.O.C. | 0.0079″ |
| Insert Style | TCGT |
| Depth of Cut Maximum (APMX) | 0.0394″ |
| Corner Radius (RE) | 0.008″ |
| Min. Turning Feed (ft(min)) | 0.0004 ″/rev |
| Insert Size | 630.5 |
| Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Cutting Edge Length (L) | 0.323″ |
| Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 0.094″ |
| Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 0.187″ |
| Chip Breaker Type | J08 |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Grade | TH10 |
| Body Material | Carbide |
| Tool Type | Turn Positive Inserts |
