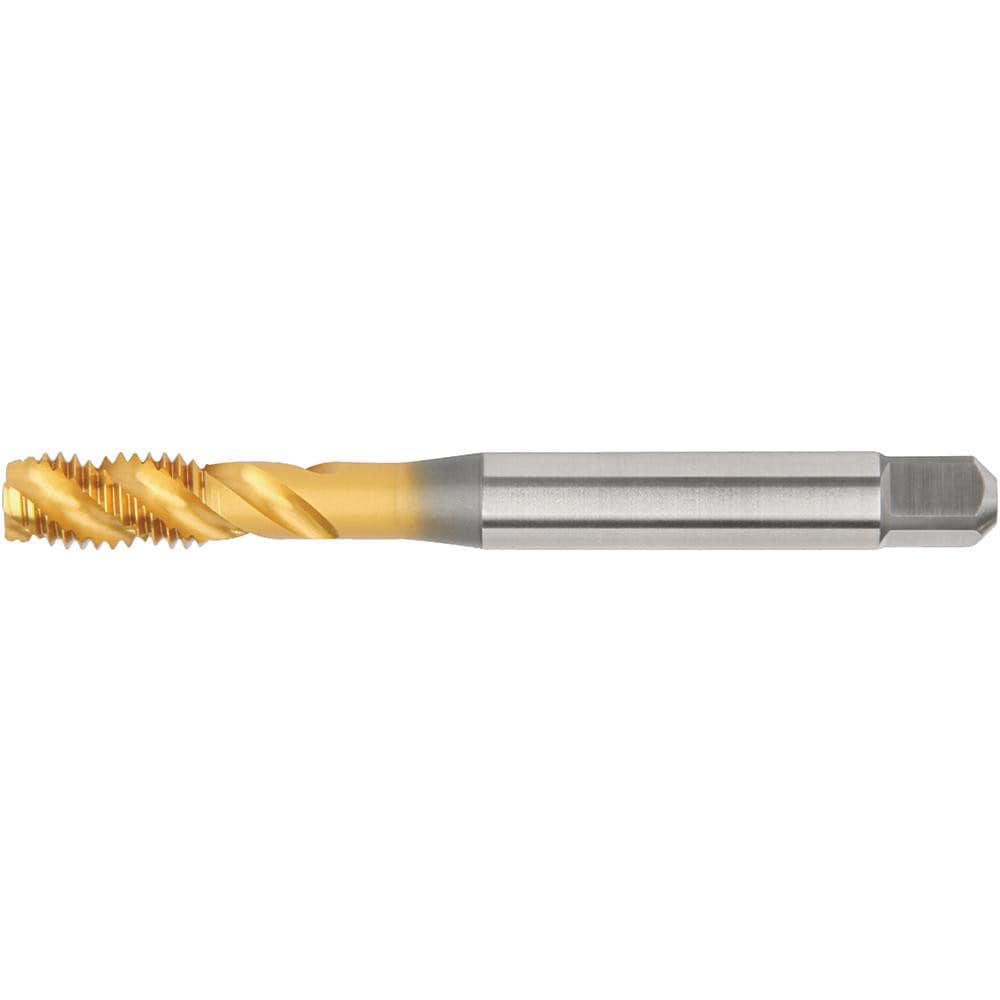

Brand: Widia / Part #: 5402194
Item #: 97187181
Brand: Widia
Model #: 5402194
Product Specifications
| Thread Size (mm) | M10x1.25 |
| Chamfer | Modified Bottoming |
| Thread Limit | D6 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Thread Depth (mm) | 39.00 |
| Coolant Through | No |
| Thread Length (mm) | 18.00 |
| Overall Length (mm) | 100.0000 |
| Thread Pitch (mm) | 1.25 |
| Thread Standard | Metric |
| Material Grade | WP42EG |
| Shank Diameter (mm) | 7.0000 |
| Square Length (mm) | 8.00 |
| Square Size (mm) | 5.50 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
