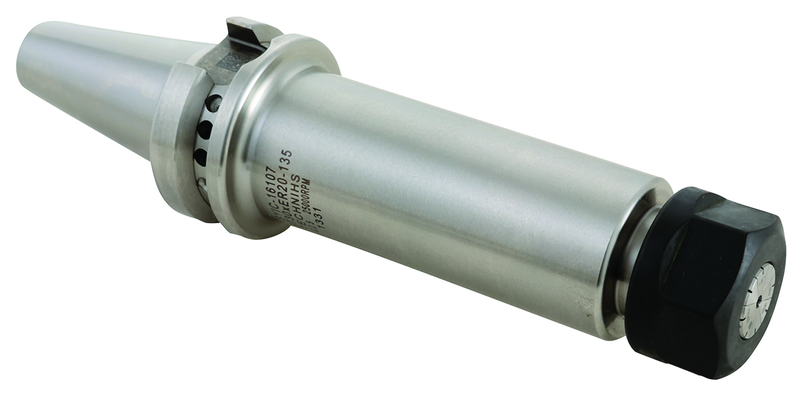

BT30 x ER20-105mm Dual Drive - Collet Chuck

Item #: TE1266106105
Manufacturer: Techniks
Mfg #: 25.122.20.

Technical Specifications:
*Brand Name: Techniks *Capacity: ER20 *Chuck Size: BT30 *Collets Included: No *Coolant Supply: Coolant-thru Flange (DIN B) or thru Spindle with Coolant Capable Rentention Knob, sold separately *Head Length/Projection: 105mm *Model Number: 25.122.20.105 *Mount: BT30 *Nut Diameter: 1.34 *Overall Length: 10.18 *Size/Range: .019 - .551 *Spindle Interface: BT30 *Weight: 1.85 lbs *Wrench Number: TE1204610

Description:
*DualDRIVE holders are compatible with Dual-Contact spindle designs and standard spindles *DualDRIVE offers improved rigidity for reduced vibration and improved T.I.R. *Techniks DualDRIVE Collet Chucks are balanced to 25,000 RPM at G2.5 tolerance * Each holder is Techniks Certified for balance and accuracy and comes with its individual lab report *DualDRIVE holders are coolant capable through the spindle *The design offers better rigidity and reduced vibration for improved performance at high metal removal rates and when machining at extended lengths *

Shipping Info:
*Actual Weight - 1.8500 *Dimensions - Height: 6.00 Length: 2.00 Width: 2.00
